Description
General part information

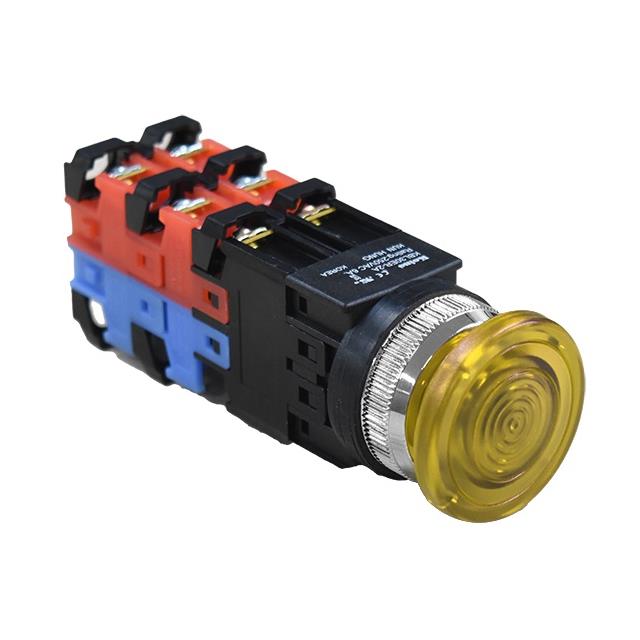

KBL30EM-L3A-Y22
SWITCH E-STOP 5A 250V
Technical Specifications
Parameters and characteristics for this part
| Specification | KBL30EM-L3A-Y22 |
|---|---|
| Circuit | 4PST-2NO/2NC |
| Current Rating | 3 A, 5 A |
| Features | Illuminated (Yellow) |
| Illumination Voltage (Nominal) | 230 VAC |
| Ingress Protection | IP40 |
| Mounting Type | Front, Panel Mount |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -25 °C |
| Panel Cutout Diameter | 25 mm |
| Panel Cutout Shape | Circular |
| Switch Function | On-Mom, Off-Mom |
| Termination Style | Screw Terminal |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 125 V |
