Description
General part information

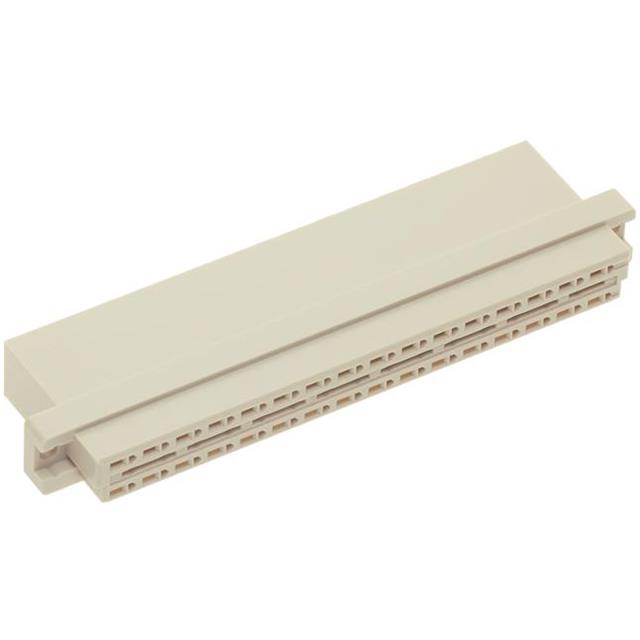

09040163201
16 (Power) Position Housing for Female Sockets Connector Free Hanging (In-Line) DIN 41612, Type D
Technical Specifications
Parameters and characteristics for this part
| Specification | 09040163201 |
|---|---|
| Connector Style | DIN 41612, Type D |
| Connector Type | Housing for Female Sockets |
| Connector Usage | Receptacle |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 16 |
| Number of Rows | 1 |
| Pitch | 5.08 mm |
| Position Types | Power |
