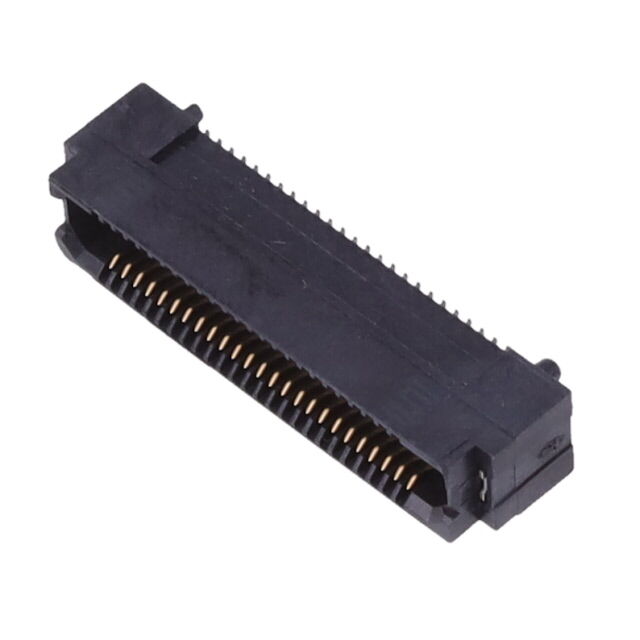

ERF8-025-07.0-L-DV-EGP-TR

Active

Samtec Inc.

CONN SOCKET 50POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ERF8 Series Other Related Documents 03 +1

ERF8-025-07.0-L-DV-EGP-TR

Active

Samtec Inc.

CONN SOCKET 50POS SMD GOLD

Deep-Dive with AI

DocumentsDatasheet ERF8 Series Other Related Documents 03 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ERF8-025-07.0-L-DV-EGP-TR

Connector Type	Socket, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Board Guide
Height Above Board [z]	0.285 in
Height Above Board [z]	7.24 mm
Mated Stacking Heights	16 mm, 22 mm, 15 mm, 9 mm, 12 mm
Mounting Type	Surface Mount
Number of Positions	50
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

ERF8-025 Series

Part	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Contact Finish	Features	Mounting Type	Height Above Board	Height Above Board	Number of Rows	Mated Stacking Heights	Pitch [x]	Pitch [x]	Height Above Board [z]	Height Above Board [z]
Samtec Inc. ERF8-025-05.0-S-DV-L-K-TR	50	0.76 Ám	30 Áin	Outer Shroud Contacts Socket	Gold	Board Guide Latches Pick and Place	Surface Mount	0.21 in	5.33 mm	2	7 mm 10 mm 13 mm 14 mm 20 mm	0.8 mm	0.031 in
Samtec Inc. ERF8-025-01-S-D-RA-EGP-TR	50	0.76 Ám	30 Áin	Outer Shroud Contacts Socket	Gold	Board Guide Mounting Flange	Surface Mount Right Angle	0.246 in	6.25 mm	2		0.8 mm	0.031 in
Samtec Inc. ERF8-025-07.0-S-DV-EGP-TR	50	0.76 Ám	30 Áin	Outer Shroud Contacts Socket	Gold	Board Guide	Surface Mount			2	9 mm 12 mm 15 mm 16 mm 22 mm	0.8 mm	0.031 in	0.285 in	7.24 mm
Samtec Inc. ERF8-025-01-S-D-RA-TR	50	0.76 Ám	30 Áin	Outer Shroud Contacts Socket	Gold	Board Guide Mounting Flange	Surface Mount Right Angle	0.246 in	6.25 mm	2		0.8 mm	0.031 in
Samtec Inc. ERF8-025-03-S-D-RA-L-TR	50	0.76 Ám	30 Áin	Outer Shroud Contacts Socket	Gold	Board Guide Latches Mounting Flange	Surface Mount Right Angle	0.246 in	6.25 mm	2		0.8 mm	0.031 in
Samtec Inc. ERF8-025-01-L-D-RA-TR	50	0.25 Ám	10 Áin	Outer Shroud Contacts Socket	Gold	Board Guide Mounting Flange	Surface Mount Right Angle	0.246 in	6.25 mm	2		0.8 mm	0.031 in
Samtec Inc. ERF8-025-05.0-L-DV-TR	50	0.25 Ám	10 Áin	Outer Shroud Contacts Socket	Gold	Board Guide	Surface Mount	0.21 in	5.33 mm	2	7 mm 10 mm 13 mm 14 mm 20 mm	0.8 mm	0.031 in
Samtec Inc. ERF8-025-01-S-D-EM2-EGPS-TR	50	0.76 Ám	30 Áin	Outer Shroud Contacts Socket	Gold		Board Edge Straddle Mount			2		0.8 mm	0.031 in
Samtec Inc. ERF8-025-07.0-S-DV-TR	50	0.76 Ám	30 Áin	Outer Shroud Contacts Socket	Gold	Board Guide	Surface Mount			2	9 mm 12 mm 15 mm 16 mm 22 mm	0.8 mm	0.031 in	0.285 in	7.24 mm
Samtec Inc. ERF8-025-07.0-L-DV-EGP-TR	50	0.25 Ám	10 Áin	Outer Shroud Contacts Socket	Gold	Board Guide	Surface Mount			2	9 mm 12 mm 15 mm 16 mm 22 mm	0.8 mm	0.031 in	0.285 in	7.24 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 5.60
		25	$ 5.01
		50	$ 4.73
	Digi-Reel®	1	$ 5.60
		25	$ 5.01
		50	$ 4.60
		100	$ 4.48
	Tape & Reel (TR)	300	$ 4.48
		600	$ 3.94
		1500	$ 3.86
