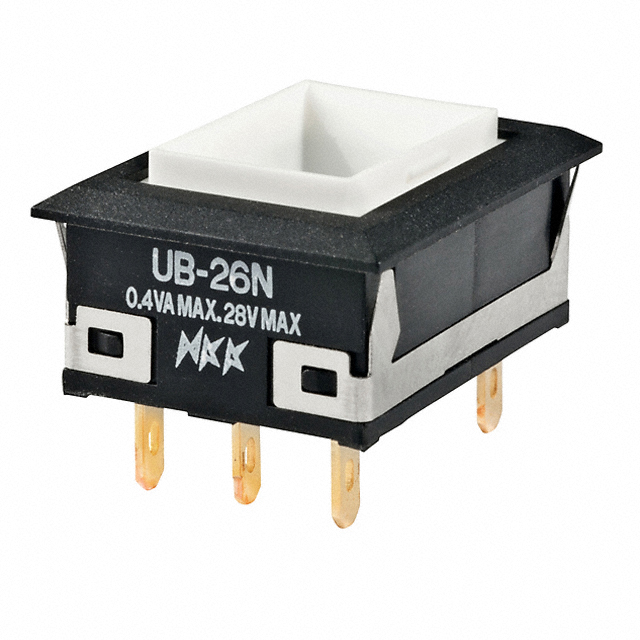

Specification	UB26NKG01N

Actuator Marking	No Marking
Actuator Type	Plunger for Cap
Circuit	DPDT
Current Rating	0.4 VA
Electrical Life (Cycles)	200000
Features	Stainless Steel
Mechanical Life (Cycles)	200000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-20 °C
Panel Cutout Length	22.4 mm
Panel Cutout Shape	Rectangular
Panel Cutout Width	16.2 mm
Switch Function	On-On
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

UB26NKG Series

Part	Voltage Rating - DC	Actuator Type	Features	Illumination Voltage (Nominal)	Termination Style	Operating Temperature (Min)	Operating Temperature (Max)	Type	Actuator Marking	Circuit	Color - Actuator/Cap	Color	Illumination Type	Mounting Type	Switch Function	Voltage Rating - AC	Current Rating	Mechanical Life (Cycles)	Electrical Life (Cycles)	Cap Feature
NKK Switches UB25SKW035C-CB	30 V	Button Square	Spot LED	1.85 VDC	PC Pin	-25 °C	50 °C	Illuminated Standard	No Marking	DPDT	Red (White Filter/Diffuser)	Red	LED	Through Hole	On-Mom	125 V	5 A	1000000 Cycles	10000 Cycles
NKK Switches UB25SKW035C-JJ	30 V	Button Square	Spot LED	1.85 VDC	PC Pin	-25 °C	50 °C	Illuminated Standard	No Marking	DPDT	Clear	Red	LED	Through Hole	On-Mom	125 V	5 A	1000000 Cycles	10000 Cycles
NKK Switches UB25SKW035C-AB	30 V	Button Square	Spot LED	1.85 VDC	PC Pin	-25 °C	50 °C	Illuminated Standard	No Marking	DPDT	Black	Red	LED	Through Hole	On-Mom	125 V	5 A	1000000 Cycles	10000 Cycles	White Window
NKK Switches UB25SKW03N-G	30 V	Button Square	Stainless Steel		PC Pin	-20 °C	70 °C	Standard	No Marking	DPDT	Blue			Through Hole	On-Mom	125 V	5 A	1000000 Cycles	10000 Cycles
NKK Switches UB25SKW035D-DD	30 V	Button Square	Stainless Steel	2 VDC	PC Pin	-25 °C	50 °C	Illuminated Standard	No Marking	DPDT	Amber	Amber	LED	Through Hole	On-Mom	125 V	5 A	1000000 Cycles	10000 Cycles
NKK Switches UB25SKW03N-A	30 V	Button Square	Stainless Steel		PC Pin	-20 °C	70 °C	Standard	No Marking	DPDT	Black			Through Hole	On-Mom	125 V	5 A	1000000 Cycles	10000 Cycles
NKK Switches UB25SKW035F-FJ	30 V	Button Square	Stainless Steel	2.1 VDC	PC Pin	-25 °C	50 °C	Illuminated Standard	No Marking	DPDT	Green	Green	LED	Through Hole	On-Mom	125 V	5 A	1000000 Cycles	10000 Cycles
NKK Switches UB25SKW035C-JB	30 V	Button Square	Spot LED	1.85 VDC	PC Pin	-25 °C	50 °C	Illuminated Standard	No Marking	DPDT	Clear (White Filter/Diffuser)	Red	LED	Through Hole	On-Mom	125 V	5 A	1000000 Cycles	10000 Cycles
NKK Switches UB25SKW035F-FB	30 V	Button Square	Stainless Steel	2.1 VDC	PC Pin	-25 °C	50 °C	Illuminated Standard	No Marking	DPDT	Green (White Filter/Diffuser)	Green	LED	Through Hole	On-Mom	125 V	5 A	1000000 Cycles	10000 Cycles
NKK Switches UB25SKW035C	30 V	Plunger for Cap	Spot LED	1.85 VDC	PC Pin	-25 °C	50 °C	Illuminated Standard	No Marking	DPDT		Red	LED	Through Hole	On-Mom	125 V	5 A	1000000 Cycles	10000 Cycles
