Description
General part information

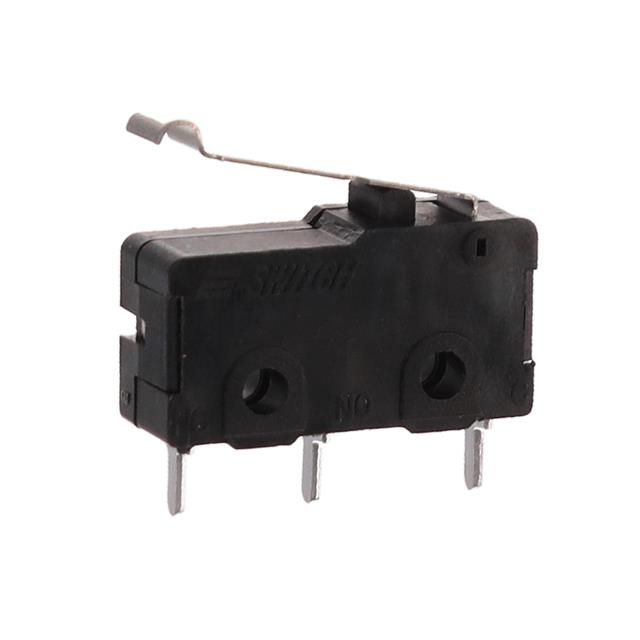

MS0850 Series
Switch SPDT Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | MS0850504F035P1A |
|---|---|
| Actuator Type | Simulated Roller, Lever |
| Circuit | SPDT |
| Current Rating | 5 A |
| Electrical Life (Cycles) | 50000 |
| Mechanical Life (Cycles) | 1000000 Cycles |
| Mounting Type | Through Hole |
| Operating Force | 35 gf |
| Operating Position (Length) | 0.429 in |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Pretravel (Length) | 0.125 in |
| Release Force | 20 gf |
| Switch Function | On-Mom |
| Termination Style | PC Pin |
| Voltage Rating - AC | 125 V |
