NTE3023
ActiveNTE Electronics, Inc

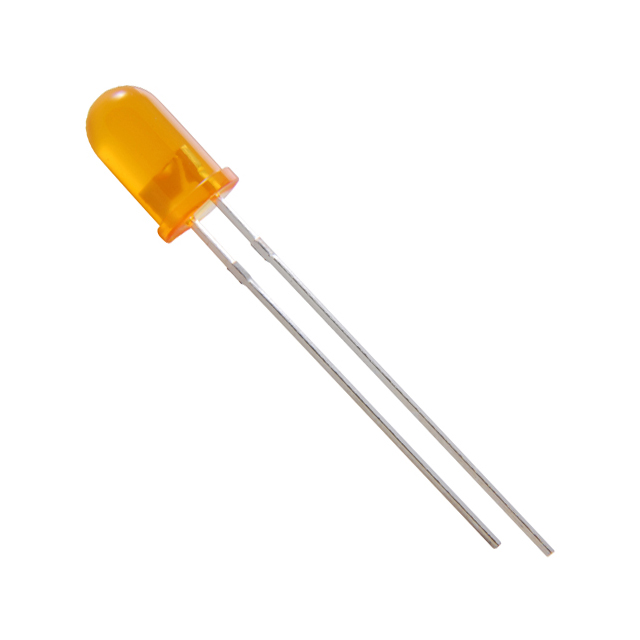

LED ORANGE 5MM T/H
NTE3023
ActiveNTE Electronics, Inc
LED ORANGE 5MM T/H
Description
General part information
NTE3023
Orange LED Indication - Discrete 2V Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | NTE3023 |
|---|---|
| Color | Orange |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) | 6.63 mm |
| Lens Color | Orange |
| Lens Diameter | 5 mm |
| Lens Style | Round, Domed Top |
| Millicandela Rating | 8.7 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension Diameter | 5.1 mm |
| Supplier Device Package | 5 mm |
| Viewing Angle | 65 ° |
| Voltage - Forward (Vf) (Typ) | 2 V |
| Wavelength - Peak | 635 nm |
