MAL211664331E3
ActiveVishay Dale
CAP ALUM 330UF 20% 10V RADIAL TH
MAL211664331E3
ActiveVishay Dale
CAP ALUM 330UF 20% 10V RADIAL TH
Description
General part information
MAL211664331E3
330 µF 10 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | MAL211664331E3 |
|---|---|
| Applications | Automotive |
| Capacitance | 330 µF |
| Height - Seated (Max) | 0.472 in |
| Impedance | 450 mOhms |
| Lead Spacing | 0.197 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |

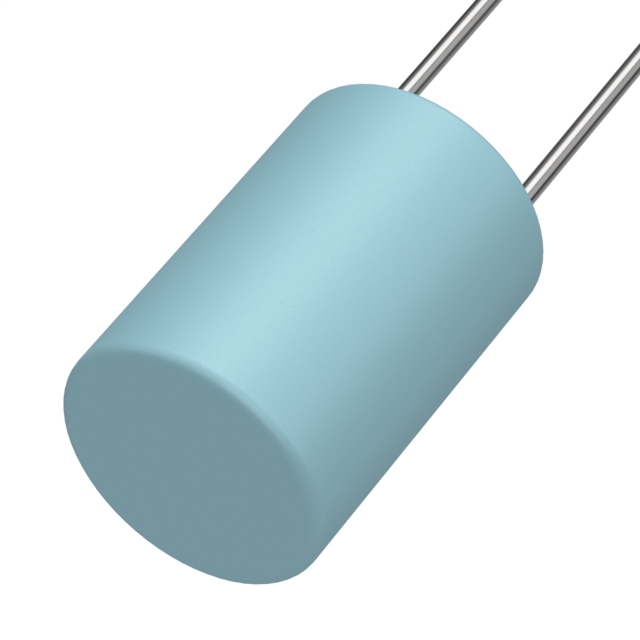

| Package / Case | Can, Radial |
| Polarization | Polar |
| Ripple Current | 215.6 mA |
| Size / Dimension Diameter | 0.323 in |
| Tolerance | 20 % |
| Voltage - Rated | 10 V |
