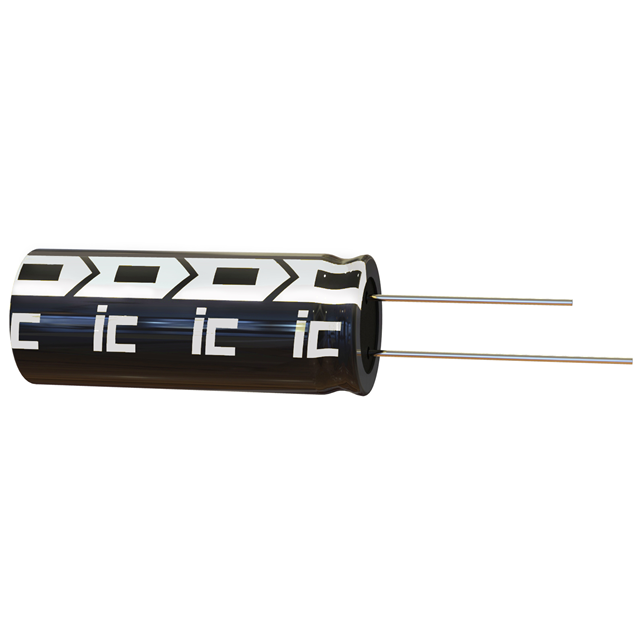

VMF106M3R8
ActiveCornell Dubilier Knowles
CAP LITH HYBRID 10F 20% 3.8V T/H
VMF106M3R8
ActiveCornell Dubilier Knowles
CAP LITH HYBRID 10F 20% 3.8V T/H
Description
General part information
VMF106M3R8
10 F (EDLC) Supercapacitor 3.8 V Radial, Can 500mOhm @ 1kHz 1000 Hrs @ 70°C
Technical Specifications
Parameters and characteristics for this part
| Specification | VMF106M3R8 |
|---|---|
| Capacitance | 10 F |
| ESR (Equivalent Series Resistance) | 500 mOhm |
| Height - Seated (Max) | 0.63 in |
| Lead Spacing | 0.138 in |
| Lifetime | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -15 °C |
| Package / Case | Can, Radial |
| Size / Dimension Diameter | 0.315 in |
| Termination | PC Pins |
| Tolerance | 20 % |
| Voltage - Rated | 3.8 VDC |
