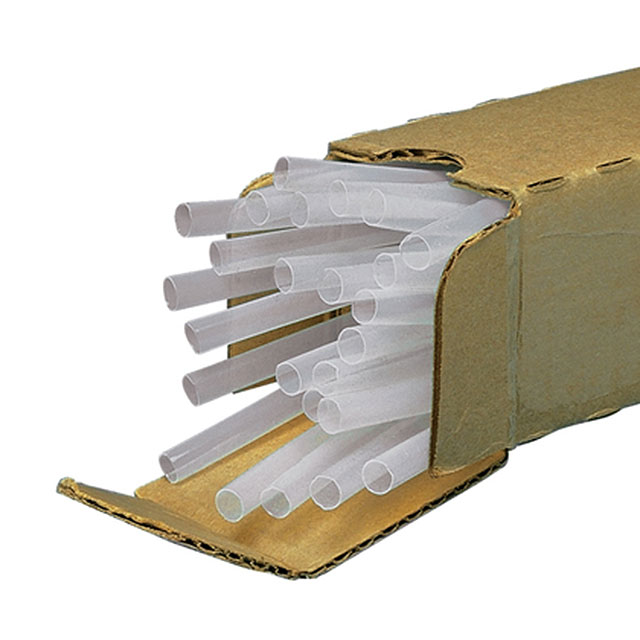

Specification	HSTTT47-48-Q

Color	Translucent, White
Features	Abrasion Resistant, Flame Retardant, Corrosion Resistant, UV Resistant, Heat Resistant, Chemical Resistant
Inner Diameter - Recovered	0.347 in
Inner Diameter - Supplied	0.47 in
Length	48 in
Material	Polytetrafluoroethylene (PTFE)
Operating Temperature (Max)	250 °C
Operating Temperature (Min)	-67 °C
Recovered Wall Thickness	0.015 in
Shelf Life	48 Months
Shrink Temperature	340 °C
Shrinkage Ratio	2
Type	Tubing, Semi Rigid

HSTT Series

...

Part	Inner Diameter - Supplied	Material	Shrink Temperature	Operating Temperature (Max)	Operating Temperature (Min)	Inner Diameter - Recovered	Recovered Wall Thickness	Shrinkage Ratio	Type	Shelf Life	Features	Color	Length	Shelf Life Start
Panduit Corp HSTTRA12-48-Q	0.125 in	Irradiated Polyolefin (PO)	125 °C	110 °C	-55 °C	0.023 in	0.038 in	2.5	Semi Rigid Tubing	60 Months	Adhesive Lined Corrosion Resistant Flame Retardant Moisture Resistant	Black	48 in
Panduit Corp HSTT4A62-48-5	0.63 in	Irradiated Polyolefin (PO)	120 °C	125 °C	-55 °C	0.158 in	0.07 in	4	Flexible Tubing	60 Months	Adhesive Lined Corrosion Resistant Flame Retardant Moisture Resistant	Black	48 in	Date of Manufacture
Panduit Corp HSTT12-48-QC	0.125 in	Irradiated Polyolefin (PO)	90 °C	135 °C	-55 °C	0.062 in	0.02 in	2	Flexible Tubing	60 Months		Clear	48 in	Date of Manufacture
Panduit Corp HSTTA19-Y	0.187 in	Irradiated Polyolefin (PO)	120 °C	110 °C	-55 °C	0.062 in	0.04 in	3	Flexible Tubing	60 Months	Adhesive Lined Corrosion Resistant Flame Retardant Moisture Resistant	Black	0.5 ft
Panduit Corp HSTT75-48-5-10	0.75 in	Irradiated Polyolefin (PO)	90 °C	135 °C	-55 °C	0.375 in	0.03 in	2	Flexible Tubing	60 Months	Flame Retardant	White	48 in
Panduit Corp HSTT12-C2	0.125 in	Irradiated Polyolefin (PO)	90 °C	135 °C	-55 °C	0.062 in	0.02 in	2	Flexible Tubing	60 Months	Flame Retardant	Red	100 ft	Date of Manufacture
Panduit Corp HSTTK09-48-Q	0.093 in	Polyvinylidene Fluor...	135 °C	175 °C	-55 °C	0.046 in	0.01 in	2	Semi Rigid Tubing	60 Months	Abrasion Resistant Chemical Resistant Flame Retardant Heat Resistant	Clear	48 in	Date of Manufacture
Panduit Corp HSTT19-C2	0.187 in	Irradiated Polyolefin (PO)	90 °C	135 °C	-55 °C	0.093 in	0.02 in	2	Flexible Tubing	60 Months	Flame Retardant	Red	100 ft	Date of Manufacture
Panduit Corp HSTT75-48-5-6	0.75 in	Irradiated Polyolefin (PO)	90 °C	135 °C	-55 °C	0.375 in	0.03 in	2	Flexible Tubing	60 Months	Flame Retardant	Blue	48 in	Date of Manufacture
Panduit Corp HSTT400-48-2C	4 in	Irradiated Polyolefin (PO)	90 °C	135 °C	-55 °C	2 in	0.055 in	2	Flexible Tubing	60 Months		Clear	48 in
