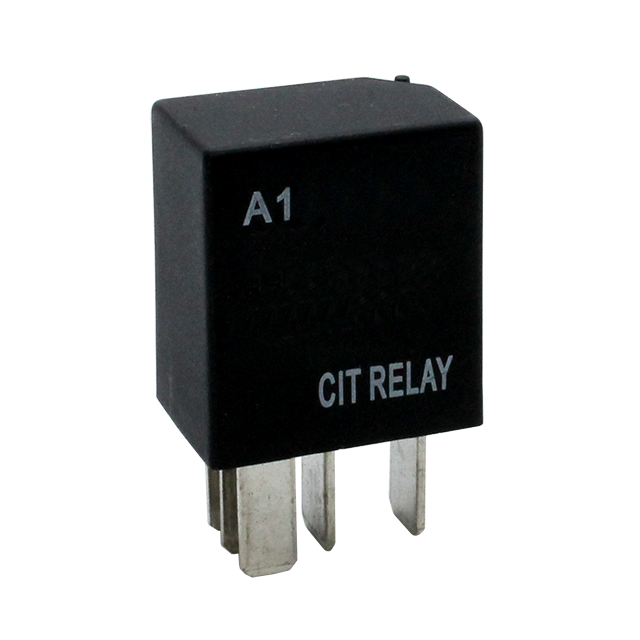

A11ASQ48VDC1.2
ActiveCIT Relay and Switch
RELAY AUTOMOTIVE SPST 30A 48V
A11ASQ48VDC1.2
ActiveCIT Relay and Switch
RELAY AUTOMOTIVE SPST 30A 48V
Description
General part information
A11ASQ48VDC1.2
RELAY AUTOMOTIVE SPST 30A 48V
Technical Specifications
Parameters and characteristics for this part
| Specification | A11ASQ48VDC1.2 |
|---|---|
| Coil Current | 25 mA |
| Coil Power | 1.2 W |
| Coil Resistance | 1.92 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 48 V |
| Contact Form | SPST-NO |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 30 A |
| Features | Fully, Sealed |
| Form A Count | 1 |
| Mounting Type | Socketable |
| Must Operate Voltage | 33.6 VAC |
| Must Release Voltage | 4.8 VAC |
| Operate Time | 10 ms |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Release Time | 7 ms |
| Switching Voltage DC (Max) | 75 VDC |
| Termination Style | Plug In, Quick Connect - Multiple Sizes |
