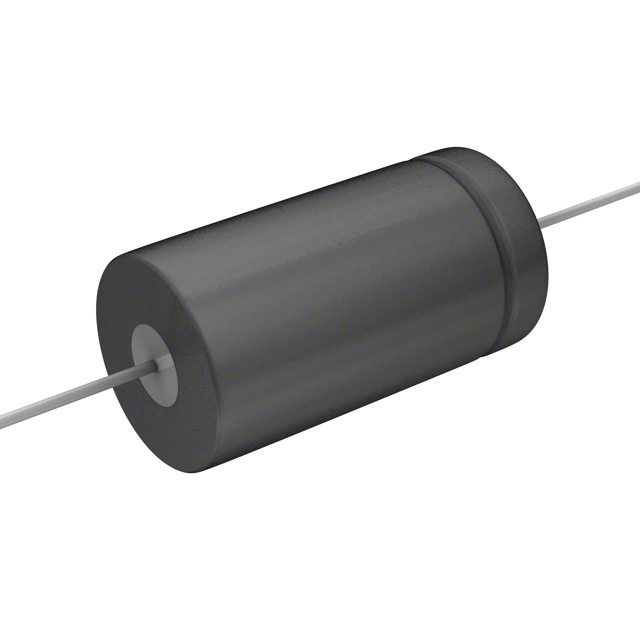

Specification	TC64

Applications	General Purpose
Capacitance	16 µF
ESR (Equivalent Series Resistance)	9.54 Ohm
Lifetime	1000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	Can, Axial
Polarization	Polar
Ripple Current	302 mA, 377.5 mA
Size / Dimension Diameter	0.75 in
Size / Dimension Length	1.375 in
Tolerance (Negative)	10 %
Tolerance (Positive)	50 %
Voltage - Rated	350 V
