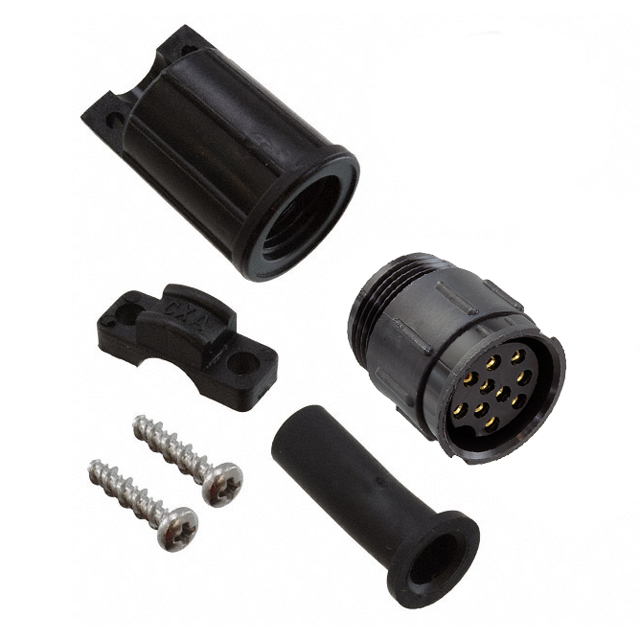

15382-10SG-331
ActiveConxall/Switchcraft
CONN RCPT FMALE 10P SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
15382-10SG-331
ActiveConxall/Switchcraft
CONN RCPT FMALE 10P SOLDER CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 15382-10SG-331 | 15382-10S Series |
|---|---|---|
| Backshell Material, Plating | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Cable Opening | - | 0.26 in |
| Cable Opening | - | 7.62 mm |
| Cable Opening | - | 0.3 in |
| Cable Opening | - | 6.6 mm |
| Cable Opening | - | 0.21 in |
| Cable Opening | - | 5.33 mm |
| Cable Opening | - | 6.35 mm |
| Cable Opening | - | 0.25 in |
| Cable Opening [diameter] | 9.65 mm | 9.65 mm |
| Cable Opening [diameter] | 0.31 in, 0.38 in | 0.31 - 0.38 in |
| Cable Opening [diameter] | 7.87 mm | 7.87 mm |
| Color | Black | Black |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Brass | Brass |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Cable Clamp, Backshell | Cable Clamp, Backshell |
| Ingress Protection | Weathertight | Weathertight |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 10 | 10 |
| Operating Temperature [Max] | 115 °C | 115 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | 600 V | 600 V |
15382-10S Series
CONN RCPT FMALE 10P SOLDER CUP
| Part | Primary Material | Ingress Protection | Features | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Number of Positions | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Shielding | Voltage Rating | Contact Finish - Mating | Backshell Material, Plating | Color | Connector Type | Orientation | Fastening Type | Contact Material | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [Min] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft 15382-10SG-326 | Plastic | Weathertight | Backshell, Cable Clamp | -40 °C | 115 °C | Free Hanging (In-Line) | 10 | 0.26 in | 7.62 mm | 0.3 in | 6.6 mm | Unshielded | 600 V | Gold | Nylon, Polyamide (PA) | Black | Receptacle, Female Sockets | Keyed | Bayonet Lock | Brass | |||||||
Conxall/Switchcraft 15382-10SG-331 | Plastic | Weathertight | Backshell, Cable Clamp | -40 °C | 115 °C | Free Hanging (In-Line) | 10 | Unshielded | 600 V | Gold | Nylon, Polyamide (PA) | Black | Receptacle, Female Sockets | Keyed | Bayonet Lock | Brass | 9.65 mm | 0.31 in, 0.38 in | 7.87 mm | ||||||||
Conxall/Switchcraft 15382-10SG-321 | Plastic | Weathertight | Backshell, Cable Clamp | -40 °C | 115 °C | Free Hanging (In-Line) | 10 | Unshielded | 600 V | Gold | Nylon, Polyamide (PA) | Black | Receptacle, Female Sockets | Keyed | Bayonet Lock | Brass | 0.21 in | 5.33 mm | 6.35 mm | 0.25 in |
