RDC60-6R8M-RC
ActiveAllied Components International
6.8UH 10% RADIAL DRUM CORE
RDC60-6R8M-RC
ActiveAllied Components International
6.8UH 10% RADIAL DRUM CORE
Description
General part information
RDC60-6R8M-RC

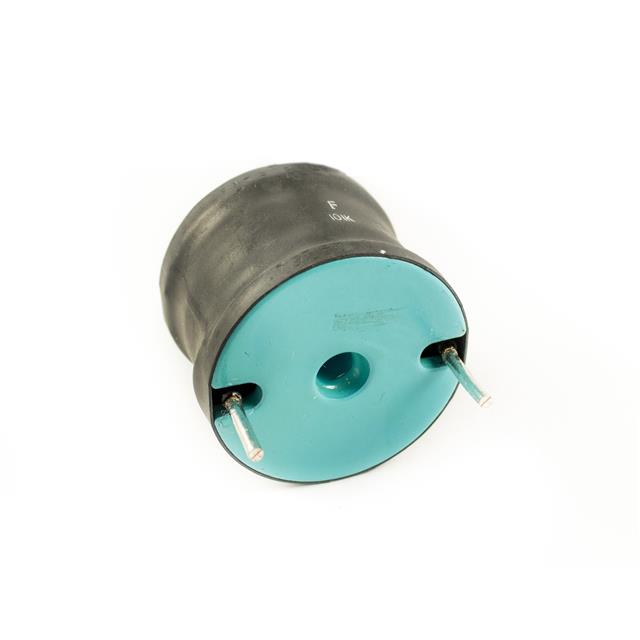

6.8 µH Unshielded Drum Core, Wirewound Inductor 35 A 3mOhm Max Radial, Vertical Cylinder
Technical Specifications
Parameters and characteristics for this part
| Specification | RDC60-6R8M-RC |
|---|---|
| Current - Saturation (Isat) | 103.8 A |
| Current Rating | 35 A |
| DC Resistance (DCR) (Max) | 3 mOhm |
| Height - Seated (Max) | 1.5 in |
| Inductance | 6.8 µH |
| Inductance Frequency - Test | 1 kHz |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Vertical Cylinder, Radial |
| Package Name | Radial |
| Shielding | Unshielded |
| Size / Dimension Diameter | 2 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
