395-025-558-458

Active

EDAC Inc.

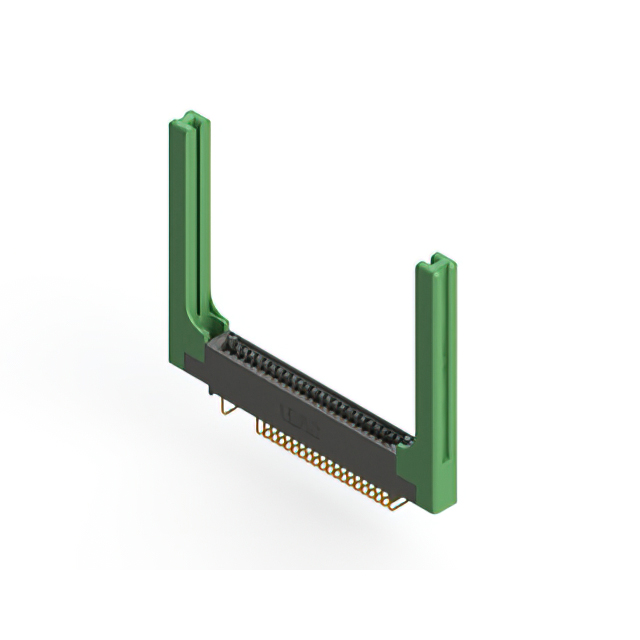

.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

395-025-558-458

Active

EDAC Inc.

.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	395-025-558-458

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Guides
Flange Feature	Top Mount Opening, 4-40, Threaded Insert
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions/Bay/Row [custom]	25
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Solder
Termination Rows	1

395-025 Series

...

Part	Read Out	Contact Finish Thickness	Contact Finish Thickness	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Finish	Termination Rows	Termination	Card Type	Mounting Type	Color	Number of Rows	Gender	Pitch [x]	Pitch [x]	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Material - Insulation	Contact Type	Number of Positions/Bay/Row [custom]	Features
EDAC Inc. 395-025-559-404	Single	10 Áin	0.25 Ám	0.156 in	Top Mount Opening Unthreaded	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	1	Solder	Non Specified - Single Edge	Through Hole Right Angle	Black	1	Female	2.54 mm	0.1 in	Copper Alloy	-40 °C	105 ░C	Polyester Thermoplastic	Cantilever	25
EDAC Inc. 395-025-541-608	Single	10 Áin	0.25 Ám		4-40 Threaded Insert Top Mount Opening		1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	1	Wire Wrap	Non Specified - Single Edge	Through Hole	Black	1	Female	2.54 mm	0.1 in	Copper Alloy	-40 °C	105 ░C	Polyester Thermoplastic	Cantilever	25
EDAC Inc. 395-025-558-688	Single	10 Áin	0.25 Ám		4-40 Threaded Insert Top Mount Opening		1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	1	Solder	Non Specified - Single Edge	Through Hole Right Angle	Black	1	Female	2.54 mm	0.1 in	Copper Alloy	-40 °C	105 ░C	Polyester Thermoplastic	Cantilever	25	Card Guides
EDAC Inc. 395-025-558-458	Single	10 Áin	0.25 Ám		4-40 Threaded Insert Top Mount Opening		1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	1	Solder	Non Specified - Single Edge	Through Hole Right Angle	Black	1	Female	2.54 mm	0.1 in	Copper Alloy	-40 °C	105 ░C	Polyester Thermoplastic	Cantilever	25	Card Guides
EDAC Inc. 395-025-524-678	Single	10 Áin	0.25 Ám		4-40 Threaded Insert Top Mount Opening		1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	1	Solder	Non Specified - Single Edge	Through Hole	Black	1	Female	2.54 mm	0.1 in	Copper Alloy	-40 °C	105 ░C	Polyester Thermoplastic	Cantilever	25	Card Guides
EDAC Inc. 395-025-520-112	Single	10 Áin	0.25 Ám	0.128 "	Flush Mount Side Opening Unthreaded	3.25 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	1	Solder	Non Specified - Single Edge	Through Hole	Black	1	Female	2.54 mm	0.1 in	Copper Alloy	-40 °C	105 ░C	Polyester Thermoplastic	Cantilever	25
EDAC Inc. 395-025-544-188	Single	10 Áin	0.25 Ám		4-40 Flush Mount Threaded Insert Top Opening		1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	1	Wire Wrap	Non Specified - Single Edge	Through Hole	Black	1	Female	2.54 mm	0.1 in	Copper Alloy	-40 °C	105 ░C	Polyester Thermoplastic	Cantilever	25	Card Guides
EDAC Inc. 395-025-558-103	Single	10 Áin	0.25 Ám	0.116 in	Floating Bobbin Flush Mount	2.95 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	1	Solder	Non Specified - Single Edge	Through Hole Right Angle	Black	1	Female	2.54 mm	0.1 in	Copper Alloy	-40 °C	105 ░C	Polyester Thermoplastic	Cantilever	25
EDAC Inc. 395-025-559-658	Single	10 Áin	0.25 Ám		4-40 Threaded Insert Top Mount Opening		1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	1	Solder	Non Specified - Single Edge	Through Hole Right Angle	Black	1	Female	2.54 mm	0.1 in	Copper Alloy	-40 °C	105 ░C	Polyester Thermoplastic	Cantilever	25	Card Guides
EDAC Inc. 395-025-520-478	Single	10 Áin	0.25 Ám		4-40 Threaded Insert Top Mount Opening		1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	1	Solder	Non Specified - Single Edge	Through Hole	Black	1	Female	2.54 mm	0.1 in	Copper Alloy	-40 °C	105 ░C	Polyester Thermoplastic	Cantilever	25	Card Guides

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 13.66
Newark	Each	1	$ 16.40
		100	$ 12.27
		250	$ 11.24
		500	$ 10.15
		1000	$ 8.14

Description

General part information

395-025 Series

25 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
