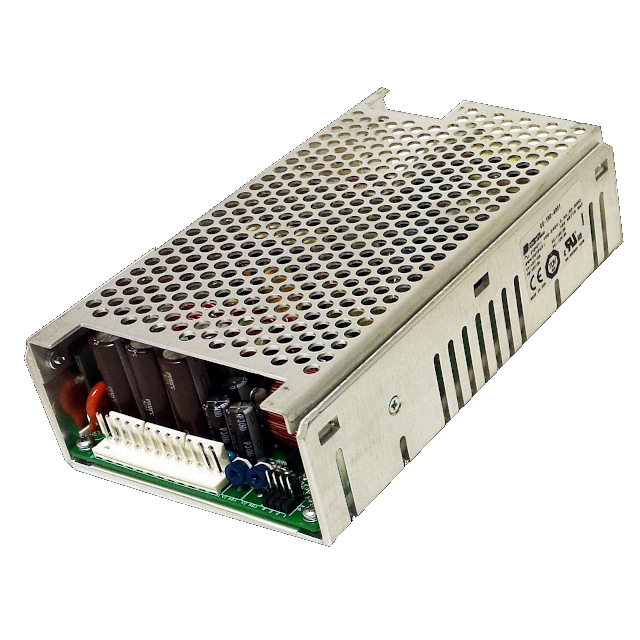

1011601CO

Active

Integrated Power Designs

CE-150-4102CO

Search across all available documentation for this part.

Active

Integrated Power Designs

CE-150-4102CO

Technical Specifications

Parameters and characteristics for this part

Specification	1011601CO

Applications	ITE (Commercial), Medical
Approval Agency	TUV, cURus, CE, UKCA
Current - Output 1	15 A
Current - Output 2	5 A
Current - Output 3	2 A
Current - Output 4	2 A
Efficiency	74 %
Features	Remote Sense, Universal Input, Adjustable Output
Mounting Type	Chassis Mount
Number of Outputs	4
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	150 W
Size / Dimension [x]	177.8 mm
Size / Dimension [x]	7 "
Size / Dimension [y]	4 "
Size / Dimension [y]	101.6 mm
Size / Dimension [z]	48.8 mm
Size / Dimension [z]	1.92 "
Standard Number	60601-1, 62368-1
Type	Enclosed
Voltage - Output 1	5 V
Voltage - Output 2	24 V
Voltage - Output 3	15 V
Voltage - Output 4	-15 V

CE-150-4102CO

Part	Current - Output 3	Mounting Type	Type	Power (Watts)	Current - Output 2	Features	Efficiency	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Output 3	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Approval Agency	Current - Output 4	Voltage - Output 4	Applications	Standard Number	Voltage - Output 1	Voltage - Output 2	Current - Output 1
Integrated Power Designs 1011601CO	2 A	Chassis Mount	Enclosed	150 W	5 A	Adjustable Output, Remote Sense, Universal Input	74 %	177.8 mm	48.8 mm	1.92 "	7 "	4 "	101.6 mm	15 V	70 °C	0 °C	4	CE, cURus, TUV, UKCA	2 A	-15 V	ITE (Commercial), Medical	60601-1, 62368-1	5 V	24 V	15 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 4 Output 5V 24V 15V -15V 85 ~ 264 VAC Input

Technical documentation and resources
