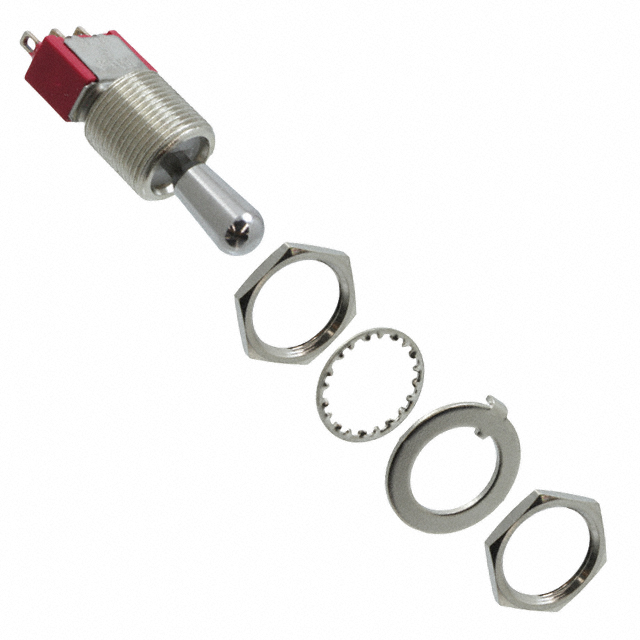

100SP4T7B13M1QEH
ActiveE-Switch
SWITCH TOGGLE SPDT 5A 120V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
100SP4T7B13M1QEH
ActiveE-Switch
SWITCH TOGGLE SPDT 5A 120V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 100SP4T7B13M1QEH | 100SP4 Series |
|---|---|---|
| Actuator Length | - | 6.86 mm |
| Actuator Length [x] | 13 mm | 5.08 - 18 mm |
| Actuator Material | Brass, Chrome Plated | Brass, Chrome Plated |
| Actuator Type | Standard Round | Standard Round, Flat Anti-Rotation |
| Bushing Thread | 15/32-32 | 1/4-40, Unthreaded, 15/32-32, M6 x 0.75 |
| Circuit | SPDT | SPDT |
| Current Rating (Amps) | 5 A | 0.4 - 5 A |
| Electrical Life | 40000 Cycles | 40000 Cycles |
| Features | Epoxy Sealed Terminals | Epoxy Sealed Terminals |
| Illumination | Non-Illuminated | Non-Illuminated |
| Mounting Type | - | Right Angle, Panel Mount, Through Hole, Vertical |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Panel Cutout Dimensions [diameter] | 11.91 mm | 0.25 - 11.91 in |
| Switch Function | Mom-Off-Mom | Mom-Off-Mom |
| Termination Style | Solder Lug | PC Pin, Solder Lug, Wire Wrap |
| Voltage Rating - AC | 120 V | 20 - 120 V |
| Voltage Rating - DC | 28 V | 20 - 28 V |
100SP4 Series
SWITCH TOGGLE SPDT 5A 120V
| Part | Actuator Type | Illumination | Panel Cutout Dimensions [diameter] | Bushing Thread | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Switch Function | Actuator Material | Circuit | Actuator Length [x] | Current Rating (Amps) | Electrical Life | Voltage Rating - AC | Voltage Rating - DC | Features | Actuator Length [custom] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
E-Switch 100SP4T1B3M2QE | Standard Round | Non-Illuminated | 0.25 in | 1/4-40 | PC Pin | -30 ░C | 85 °C | Mom-Off-Mom | Brass, Chrome Plated | SPDT | 12.19 mm | 5 A | 40000 Cycles | 120 V | 28 V | Epoxy Sealed Terminals | ||
E-Switch 100SP4T6B11M2QEH | Flat Anti-Rotation | Non-Illuminated | 0.25 in | 1/4-40 | PC Pin | -30 ░C | 85 °C | Mom-Off-Mom | Brass, Chrome Plated | SPDT | 12.3 mm | 5 A | 40000 Cycles | 120 V | 28 V | Epoxy Sealed Terminals | ||
E-Switch 100SP4T2B3M6RE | Standard Round | Non-Illuminated | 0.25 in | 1/4-40 | PC Pin | -30 ░C | 85 °C | Mom-Off-Mom | Brass, Chrome Plated | SPDT | 0.4 VA | 40000 Cycles | 20 V | 20 V | Epoxy Sealed Terminals | 6.86 mm | Panel Mount, Right Angle | |
E-Switch 100SP4T1B4VS31RE | Standard Round | Non-Illuminated | Unthreaded | PC Pin | -30 ░C | 85 °C | Mom-Off-Mom | Brass, Chrome Plated | SPDT | 10.41 mm | 0.4 VA | 40000 Cycles | 20 V | 20 V | Epoxy Sealed Terminals | Through Hole | ||
E-Switch 100SP4T4B4M7RE | Standard Round | Non-Illuminated | Unthreaded | PC Pin | -30 ░C | 85 °C | Mom-Off-Mom | Brass, Chrome Plated | SPDT | 16.26 mm | 0.4 VA | 40000 Cycles | 20 V | 20 V | Epoxy Sealed Terminals | Right Angle, Through Hole, Vertical | ||
E-Switch 100SP4T1B1M1QEH | Standard Round | Non-Illuminated | 0.25 in | 1/4-40 | Solder Lug | -30 ░C | 85 °C | Mom-Off-Mom | Brass, Chrome Plated | SPDT | 10.41 mm | 5 A | 40000 Cycles | 120 V | 28 V | Epoxy Sealed Terminals | ||
E-Switch 100SP4T1B9M1QEH | Standard Round | Non-Illuminated | 0.25 in | 1/4-40 | Solder Lug | -30 ░C | 85 °C | Mom-Off-Mom | Brass, Chrome Plated | SPDT | 10.41 mm | 5 A | 40000 Cycles | 120 V | 28 V | Epoxy Sealed Terminals | ||
E-Switch 100SP4T7B13M54QEH | Standard Round | Non-Illuminated | 11.91 mm | 15/32-32 | Wire Wrap | -30 ░C | 85 °C | Mom-Off-Mom | Brass, Chrome Plated | SPDT | 13 mm | 5 A | 40000 Cycles | 120 V | 28 V | Epoxy Sealed Terminals | ||
E-Switch 100SP4T6B11M1REH | Flat Anti-Rotation | Non-Illuminated | 0.25 in | 1/4-40 | Solder Lug | -30 ░C | 85 °C | Mom-Off-Mom | Brass, Chrome Plated | SPDT | 12.3 mm | 0.4 VA | 40000 Cycles | 20 V | 20 V | Epoxy Sealed Terminals | ||
E-Switch 100SP4T6B11M51REH | Flat Anti-Rotation | Non-Illuminated | 0.25 in | 1/4-40 | Wire Wrap | -30 ░C | 85 °C | Mom-Off-Mom | Brass, Chrome Plated | SPDT | 12.3 mm | 0.4 VA | 40000 Cycles | 20 V | 20 V | Epoxy Sealed Terminals |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.96 | |
| 10 | $ 5.14 | |||
| 25 | $ 4.85 | |||
| 50 | $ 4.64 | |||
| 100 | $ 4.44 | |||
| 250 | $ 4.18 | |||
| 500 | $ 4.00 | |||
| 1000 | $ 3.82 | |||
Description
General part information
100SP4 Series
Toggle Switch SPDT Panel Mount
