10612-24-9

Active

TE Connectivity Aerospace, Defense and Marine

10612-24-9 5'

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

10612-24-9 5'

Technical Specifications

Parameters and characteristics for this part

Specification	10612-24-9

Cable Type	Twinaxial
Conductor Material	Copper, Silver Coated
Conductor Strand [custom]	36 AWG
Conductor Strand [custom]	19 Strands
Dielectric Diameter [diameter]	0.048 in
Dielectric Diameter [diameter]	1.22 mm
Dielectric Material	Ethylene Tetrafluoroethylene (ETFE)
Impedance	77 Ohms
Jacket (Insulation) Diameter [diameter]	0.129 in
Jacket (Insulation) Diameter [diameter]	3.28 mm
Jacket (Insulation) Material	Ethylene Tetrafluoroethylene (ETFE)
Length	25 ft, 6000 in
Length	7.62 m, 152.4 m
Length [x]	1 ft, 100 ft
Length [x]	300 mm, 30.48 m
Shield Material	Copper, Tinned
Shield Type	Braid
Wire Gauge	24 AWG

10612-24-9 5'

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Length [x]	Length [x]	Impedance	Length	Length	Jacket (Insulation) Material	Wire Gauge	Cable Type	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Dielectric Material	Conductor Strand [custom]	Conductor Strand [custom]	Shield Material	Shield Type
TE Connectivity Aerospace, Defense and Marine 10612-24-9	0.129 in	3.28 mm	Copper, Silver Coated	1 ft, 100 ft	30.48 m, 300 mm	77 Ohms	25 ft, 6000 in	7.62 m, 152.4 m	Ethylene Tetrafluoroethylene (ETFE)	24 AWG	Twinaxial	0.048 in	1.22 mm	Ethylene Tetrafluoroethylene (ETFE)	36 AWG	19 Strands	Copper, Tinned	Braid

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

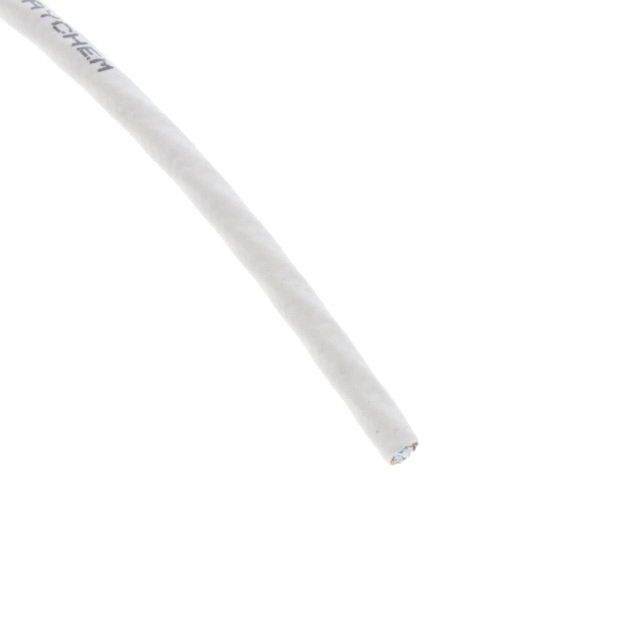

Twinaxial Cable 24 AWG 5.0' (1.52m) 77 Ohms
