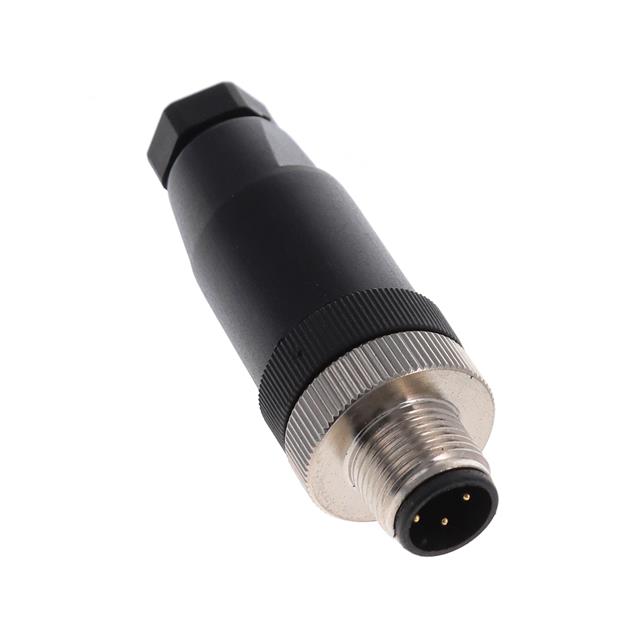

M12-04P-A-AE4
ActiveOn Shore Technology Inc.
4 POSITION M12 CIRCULAR CONNECTO
M12-04P-A-AE4
ActiveOn Shore Technology Inc.
4 POSITION M12 CIRCULAR CONNECTO
Description
General part information
M12-04P-A-AE4
4 Position Circular Connector Plug, Male Pins Screw
Technical Specifications
Parameters and characteristics for this part
| Specification | M12-04P-A-AE4 |
|---|---|
| Backshell Material, Plating | Nylon, Polyamide (PA) |
| Cable Opening (Max) | 0.236 in |
| Cable Opening (Min) | 0.157 in |
| Color | Black |
| Connector Type | Male Pins, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Brass |
| Current Rating | 4 A |
| Fastening Type | Threaded |
| Features | Backshell |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Insert Material | PA, Nylon, Polyamide |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Orientation | A |
| Primary Material | Plastic |
| Shell Material | Nylon, Polyamide (PA) |
| Shell Size - Insert | M12-4 |
| Shielding | Unshielded |
| Termination | Screw |
| Voltage Rating | 250 V |
| Voltage Rating (Type) | DC |
