CFVE-A7BP-212.5TS
ObsoleteCardinal Components Inc.
XTAL OSC VCXO 212.5000MHZ LVPECL
CFVE-A7BP-212.5TS
ObsoleteCardinal Components Inc.
XTAL OSC VCXO 212.5000MHZ LVPECL
Description
General part information

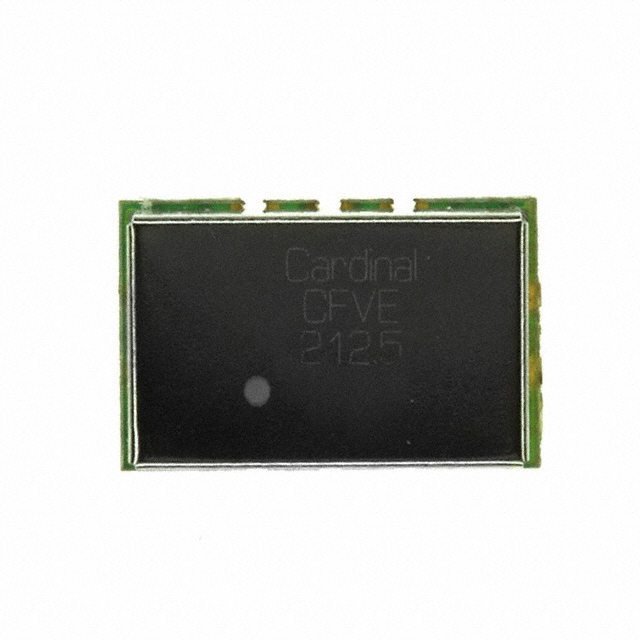

CFVE-A7BP-212.5TS
212.5 MHz VCXO LVPECL Oscillator 3.3V Enable/Disable 6-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | CFVE-A7BP-212.5TS |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) | 100 mA |
| Frequency | 212.5 MHz |
| Frequency Stability | 50 ppm |
| Function | Enable, Disable |
| Height - Seated (Max) | 0.138 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | LVPECL |
| Package / Case | No Lead, 6-SMD |
| Size / Dimension Length | 0.551 in |
| Size / Dimension Width | 0.354 in |
| Type | VCXO |
| Voltage - Supply | 3.3 V |
