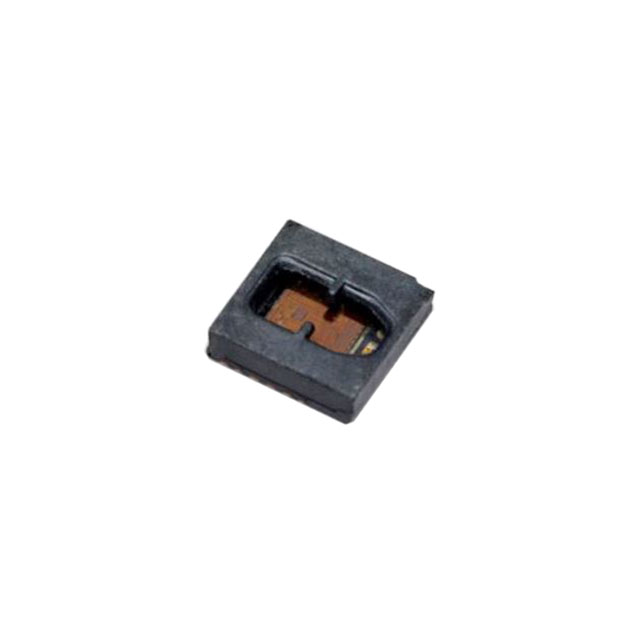

AEDR-9820A-102
ActiveBroadcom Limited
AUTO HT, ENCODER 225LPI, REEL 10
AEDR-9820A-102
ActiveBroadcom Limited
AUTO HT, ENCODER 225LPI, REEL 10
Description
General part information
AEDR-9820A-102
Rotary Encoder Optical 225 LPI Digital
Technical Specifications
Parameters and characteristics for this part
| Specification | AEDR-9820A-102 |
|---|---|
| Actuator Type | Codewheel Not Included |
| Built in Switch | No |
| Detent | No |
| Encoder Type | Optical |
| Mounting Type | Surface Mount |
| Output Type | Digital |
| Pulses per Revolution | 225 LPI |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply (Range 1 Maximum) | 3.63 V |
| Voltage - Supply (Range 1 Minimum) | 2.97 V |
| Voltage - Supply (Range 2 Maximum) | 5.5 V |
| Voltage - Supply (Range 2 Minimum) | 4.5 V |
