RWM04104701JR15E1
ObsoleteVishay Dale

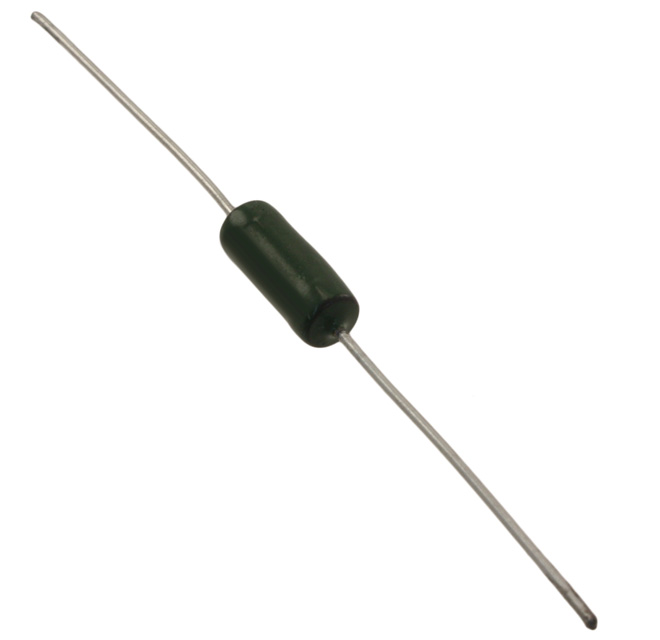

RES WIREWOUND 4.7K OHM 3W
RWM04104701JR15E1
ObsoleteVishay Dale
RES WIREWOUND 4.7K OHM 3W
Description
General part information
RWM04104701JR15E1
4.7 kOhms ±5% 3W Through Hole Resistor Axial Flame Proof, Safety Wirewound
Technical Specifications
Parameters and characteristics for this part
| Specification | RWM04104701JR15E1 |
|---|---|
| Composition | Wirewound |
| Features | Safety, Flame Proof |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 350 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 3 W |
| Resistance | 4.7 kOhm |
| Size / Dimension Diameter | 0.217 in |
| Size / Dimension Length | 0.472 in |
| Temperature Coefficient | 75 ppm/¯C |
| Tolerance | 5 % |
