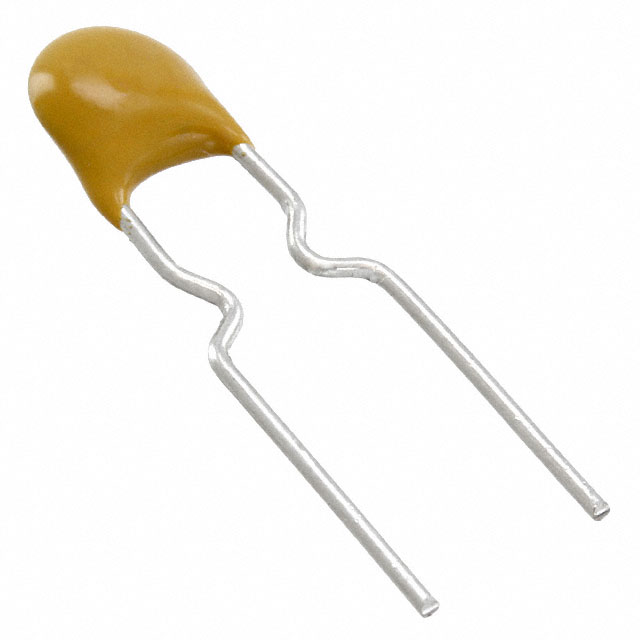

06R120BU
ObsoleteLITTELFUSE
PTC RESET FUSE 6V 1.2A RADIAL
06R120BU
ObsoleteLITTELFUSE
PTC RESET FUSE 6V 1.2A RADIAL
Description
General part information
06R120BU
Polymeric PTC Resettable Fuse 6V 1.2 A Ih Through Hole Radial, Disc
Technical Specifications
Parameters and characteristics for this part
| Specification | 06R120BU |
|---|---|
| Approval Agency | cURus, TUV |
| Current - Hold (Ih) (Max) | 1.2 A |
| Current - Max | 40 A |
| Current - Trip (It) | 2 A |
| Height - Seated (Max) | 0.449 in |
| Lead Spacing | 0.201 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Disc, Radial |
| Resistance - Initial (Ri) (Min) | 65 mOhms |
| Resistance - Post Trip (R1) (Max) | 140 mOhms |
| Size / Dimension Diameter | 0.272 in |
| Size / Dimension Thickness | 0.118 in |
| Time to Trip | 500 ms |
| Type | Polymeric |
| Voltage - Max | 6 V |
