BS-33-10-P

Active

3M (TC)

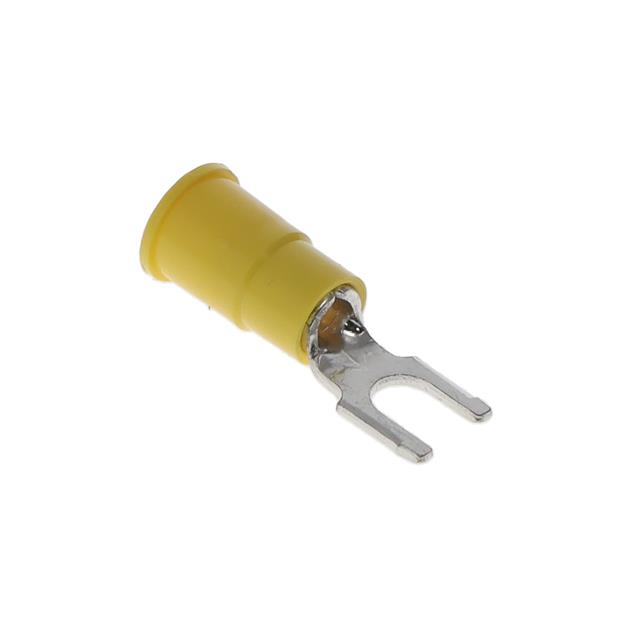

12-10 AWG VINYL INSULATED BUTTED SEAM BLOCK FORK TERMINAL

Search across all available documentation for this part.

Active

3M (TC)

12-10 AWG VINYL INSULATED BUTTED SEAM BLOCK FORK TERMINAL

Technical Specifications

Parameters and characteristics for this part

Specification	BS-33-10-P

Color	Yellow
Contact Finish	Tin
Contact Material	ETP, Copper
Features	Butted Seam
Insulation	Insulated
Insulation Diameter	0.25 "
Insulation Diameter	6.35 mm
Length - Overall	26.16 mm
Length - Overall [x]	1.03 in
Length - Ring Center to Termination	0.29 in
Length - Ring Center to Termination	7.37 mm
Length - Termination	13.97 mm
Length - Termination	0.55 in
Material - Insulation	Vinyl
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	10 Stud
Terminal Type	Standard
Termination	Crimp
Width - Outer Edges [y]	8.13 mm
Width - Outer Edges [y]	0.32 in
Wire Gauge [Max]	12 AWG
Wire Gauge [Min]	10 AWG

Part	Contact Material	Insulation Diameter	Insulation Diameter	Length - Termination	Length - Termination	Wire Gauge [Max]	Wire Gauge [Min]	Termination	Length - Overall [x]	Length - Overall	Mounting Type	Length - Ring Center to Termination	Length - Ring Center to Termination	Insulation	Stud/Tab Size	Features	Terminal Type	Color	Contact Finish	Material - Insulation	Width - Outer Edges [y]	Width - Outer Edges [y]	Length - Termination [x]	Length - Overall [x]
3M (TC) BS-33-10-P	Copper ETP	0.25 "	6.35 mm	13.97 mm	0.55 in	12 AWG	10 AWG	Crimp	1.03 in	26.16 mm	Free Hanging (In-Line)	0.29 in	7.37 mm	Insulated	10 Stud	Butted Seam	Standard	Yellow	Tin	Vinyl	8.13 mm	0.32 in
3M (TC) BS-33-10-W	Copper ETP			6.35 mm		12 AWG	10 AWG	Crimp	0.73 in		Free Hanging (In-Line)	0.29 in	7.37 mm	Non-Insulated	10 Stud	Brazed Seam	Standard		Tin		8.13 mm	0.32 in	0.25 "	18.54 mm
3M (TC) BS-33-6-NB						12 AWG	10 AWG	Crimp			Free Hanging (In-Line)			Insulated	6 Stud		Standard	Yellow		Nylon Polyamide (PA)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Yellow 10 Stud Spade Terminal Connector Crimp 10-12 AWG
