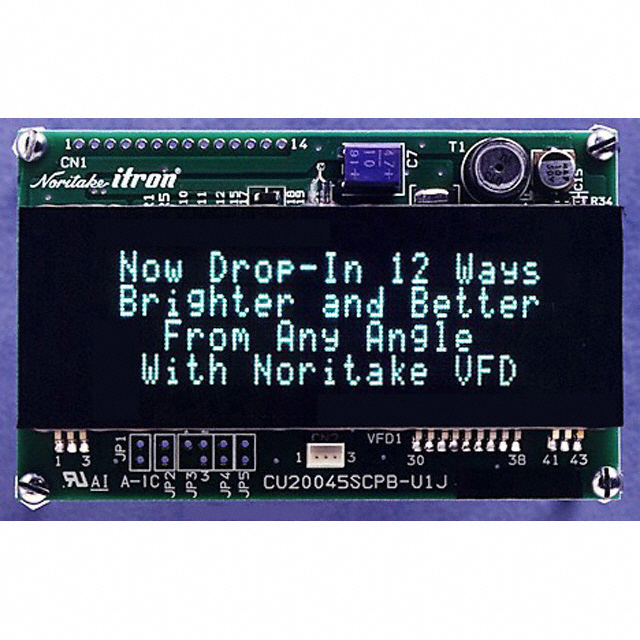

CU20045SCPB-W5J
ObsoleteNoritake U.S.A., Inc.
MODULE VF DISPLAY 20X4 5MM CHAR
CU20045SCPB-W5J
ObsoleteNoritake U.S.A., Inc.
MODULE VF DISPLAY 20X4 5MM CHAR
Description
General part information
CU20045SCPB-W5J
Vacuum Fluorescent Display (VFD) 20 x 4 Character 5V 98.00mm x 60.00mm x 17.00mm
Technical Specifications
Parameters and characteristics for this part
| Specification | CU20045SCPB-W5J |
|---|---|
| Character Height | 4.7 mm |
| Character Width | 2.4 mm |
| Display Columns | 20 |
| Display Rows | 4 |
| Display Type | Character |
| Format Height (Dots) | 7 Dots |
| Format Width (Dots) | 5 Dots |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Outline Height | 17 mm |
| Outline Length | 98 mm |
| Outline Width | 60 mm |
| Viewing Area Length | 70.8 mm |
| Viewing Area Width | 20.9 mm |
| Voltage - Supply | 5 VDC |
