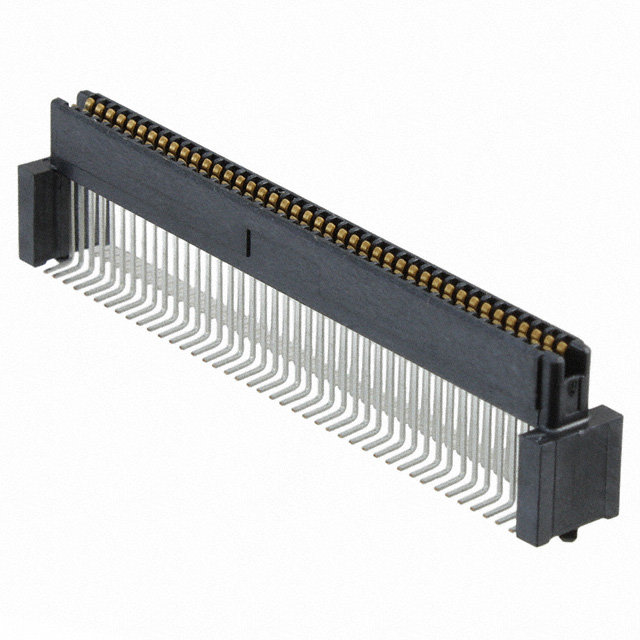

120527-2
ActiveTE Connectivity AMP Connectors
CONN PLUG 84POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
120527-2
ActiveTE Connectivity AMP Connectors
CONN PLUG 84POS SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 120527-2 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Features | Board Guide |
| Height Above Board | 0.329 in |
| Height Above Board | 8.35 mm |
| Mated Stacking Heights | 13 mm, 10 mm, 12 mm, 15 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 84 |
| Number of Rows | 2 |
| Pitch [x] | 0.039 in |
| Pitch [x] | 1 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3200 | $ 6.26 | |
120527 Series
CONN PLUG 84POS SMD GOLD
| Part | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Mounting Type | Features | Mated Stacking Heights | Contact Finish | Height Above Board | Height Above Board | Number of Rows | Pitch [x] | Pitch [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 120527-2 | 0.76 Ám | 30 Áin | 84 | Surface Mount | Board Guide | 10 mm, 12 mm, 13 mm, 15 mm | Gold | 0.329 in | 8.35 mm | 2 | 0.039 in | 1 mm |
Description
General part information
120527 Series
84 Position Connector Plug, Center Strip Contacts Surface Mount Gold
Documents
Technical documentation and resources
No documents available
