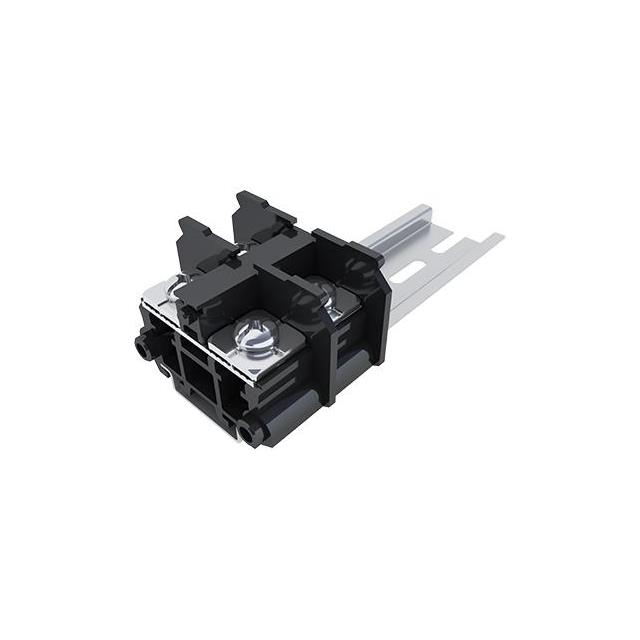

DKB80
ActiveDinkle Corporation, USA
FEED-THROUGH SINGLE LEVEL, SCREW
DKB80
ActiveDinkle Corporation, USA
FEED-THROUGH SINGLE LEVEL, SCREW
Description
General part information
DKB80
2 Position Terminal Block Black NEMA Open Construction 19.0mm
Technical Specifications
Parameters and characteristics for this part
| Specification | DKB80 |
|---|---|
| Current - IEC | 76 A |
| Current - UL | 85 A |
| Height (Max) | 1.496 in |
| Housing Color | Black |
| Length | 2.126 in |
| Material - Insulation | PC, Polycarbonate |
| Material Flammability Rating | UL94 V-2 |
| Mounting Type | DIN Rail |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Stripping Length (Max) | 17 mm |
| Stripping Length (Min) | 16 mm |
| Terminal Width | 19 mm |
| Termination Style | Screw |
| Type | NEMA Open Construction |
| Voltage - IEC | 800 V |
| Voltage - UL | 600 V |
| Wire Gauge or Range - AWG (Max) | 18 AWG |
| Wire Gauge or Range - AWG (Min) | 4 AWG |
| Wire Gauge or Range - mm² (Maximum) | 16 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.75 mm² |
