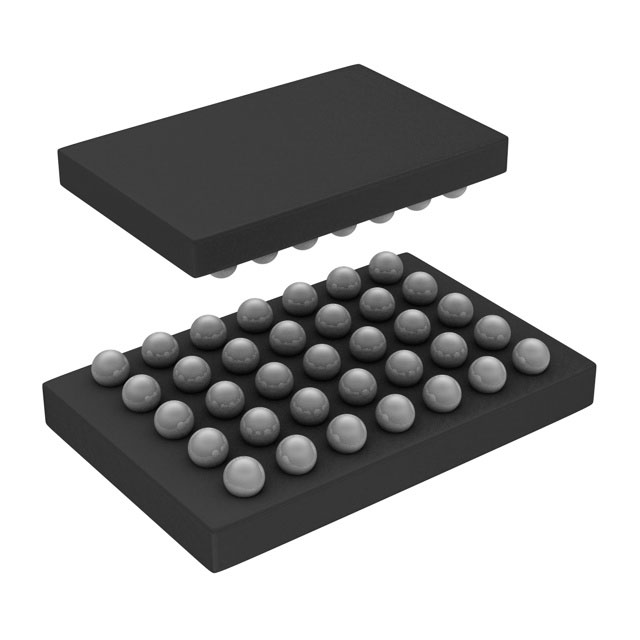

CY8C4124FNI-S403T

Active

Infineon Technologies

IC MCU 32BIT 16KB FLASH 35WLCSP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CY8C4124FNI-S403T

Active

Infineon Technologies

IC MCU 32BIT 16KB FLASH 35WLCSP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CY8C4124FNI-S403T

Connectivity	IrDA, SmartCard, I2C, SPI, SSP, LINbus, Microwire, UART/USART
Core Processor	ARM® Cortex®-M0+
Core Size	32-Bit Single-Core
Data Converters	IDAC, Slope
Data Converters [custom]	16, 2 channels
Data Converters [custom]	10 b
Mounting Type	Surface Mount
Number of I/O	31
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal
Package / Case	35-XFBGA, WLCSP
Peripherals	Brown-out Detect/Reset, CapSense, LVD, POR, PWM, WDT, LCD
Program Memory Size	16 KB
Program Memory Type	FLASH
RAM Size	4K x 8
Speed	24 MHz
Supplier Device Package	35-WLCSP
Supplier Device Package [x]	2.58
Supplier Device Package [y]	2.1
Voltage - Supply (Vcc/Vdd) [Max]	5.5 V
Voltage - Supply (Vcc/Vdd) [Min]	1.71 V

CY8C4124 Series

Part	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Oscillator Type	Program Memory Type	Mounting Type	Core Processor	Speed	Connectivity	Program Memory Size	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Package / Case [custom]	Package / Case	Package / Case [custom]	RAM Size	Number of I/O	Core Size	Peripherals	Data Converters	Data Converters	Data Converters [custom]	Data Converters [custom]	Supplier Device Package [y]	Supplier Device Package [x]	Qualification	Data Converters [custom]	Data Converters [custom]	Data Converters [custom]	Data Converters [custom]	Grade
Infineon Technologies CY8C4124PVI-442	1.71 V	5.5 V	Internal	FLASH	Surface Mount	ARM® Cortex®-M0	24 MHz	I2C IrDA LINbus Microwire SmartCard SPI SSP UART/USART	16 KB	85 °C	-40 °C	28-SSOP	0.209 in	28-SSOP	5.3 mm	4K x 8	24	32-Bit Single-Core	Brown-out Detect/Reset CapSense LCD LVD POR PWM WDT	A/D D/A IDAC SAR	2 8 12 b
Infineon Technologies CY8C4124PVI-432T	1.71 V	5.5 V	Internal	FLASH	Surface Mount	ARM® Cortex®-M0	24 MHz	I2C IrDA LINbus Microwire SmartCard SPI SSP UART/USART	16 KB	85 °C	-40 °C	28-SSOP	0.209 in	28-SSOP	5.3 mm	4K x 8	24	32-Bit Single-Core	Brown-out Detect/Reset LVD POR PWM WDT	A/D D/A IDAC SAR	2 8 12 b
Infineon Technologies CY8C4124FNI-S403T	1.71 V	5.5 V	Internal	FLASH	Surface Mount	ARM® Cortex®-M0+	24 MHz	I2C IrDA LINbus Microwire SmartCard SPI SSP UART/USART	16 KB	85 °C	-40 °C	35-WLCSP		35-XFBGA WLCSP		4K x 8	31	32-Bit Single-Core	Brown-out Detect/Reset CapSense LCD LVD POR PWM WDT	IDAC Slope		2 channels 16	10 b	2.1	2.58
Infineon Technologies CY8C4124PVI-442	1.71 V	5.5 V	Internal	FLASH	Surface Mount	ARM® Cortex®-M0	24 MHz	I2C IrDA LINbus Microwire SmartCard SPI SSP UART/USART	16 KB	85 °C	-40 °C	28-SSOP	0.209 in	28-SSOP	5.3 mm	4K x 8	24	32-Bit Single-Core	Brown-out Detect/Reset CapSense LCD LVD POR PWM WDT	A/D D/A IDAC SAR	2 8 12 b
Infineon Technologies CY8C4124LQI-S413T	1.71 V	5.5 V	Internal	FLASH	Surface Mount	ARM® Cortex®-M0+	24 MHz	I2C IrDA LINbus Microwire SmartCard SPI SSP UART/USART	16 KB	85 °C	-40 °C	40-QFN (6x6)		40-UFQFN Exposed Pad		4K x 8	34	32-Bit Single-Core	Brown-out Detect/Reset CapSense LCD LVD POR PWM WDT	IDAC Slope		2 channels 16	10 b
Infineon Technologies CY8C4124PVI-442T	1.71 V	5.5 V	Internal	FLASH	Surface Mount	ARM® Cortex®-M0	24 MHz	I2C IrDA LINbus Microwire SmartCard SPI SSP UART/USART	16 KB	85 °C	-40 °C	28-SSOP	0.209 in	28-SSOP	5.3 mm	4K x 8	24	32-Bit Single-Core	Brown-out Detect/Reset CapSense LCD LVD POR PWM WDT	A/D D/A IDAC SAR	2 8 12 b
Infineon Technologies CY8C4124PVS-S422T	1.71 V	5.5 V	Internal	FLASH	Surface Mount	ARM® Cortex®-M0+	24 MHz	I2C IrDA LINbus Microwire SmartCard SPI SSP UART/USART	16 KB	105 °C	-40 °C	28-SSOP	0.209 in	28-SSOP	5.3 mm	4K x 8	24	32-Bit	Brown-out Detect/Reset CapSense LCD LVD POR PWM WDT							AEC-Q100	2	10 12	12 16	7	Automotive
Infineon Technologies CY8C4124PVQ-432	1.71 V	5.5 V	Internal	FLASH	Surface Mount	ARM® Cortex®-M0	24 MHz	I2C IrDA LINbus Microwire SmartCard SPI SSP UART/USART	16 KB	105 °C	-40 °C	28-SSOP	0.209 in	28-SSOP	5.3 mm	4K x 8	24	32-Bit Single-Core	Brown-out Detect/Reset LVD POR PWM WDT	A/D 8x12b SAR D/A 1x7b 1x8b
Infineon Technologies CY8C4124PVQ-442	1.71 V	5.5 V	Internal	FLASH	Surface Mount	ARM® Cortex®-M0	24 MHz	I2C IrDA LINbus Microwire SmartCard SPI SSP UART/USART	16 KB	105 °C	-40 °C	28-SSOP	0.209 in	28-SSOP	5.3 mm	4K x 8	24	32-Bit Single-Core	Brown-out Detect/Reset CapSense LCD LVD POR PWM WDT	A/D 8x12b SAR D/A 1x7b 1x8b
Infineon Technologies CY8C4124PVI7-442	1.71 V	5.5 V	Internal	FLASH		ARM® Cortex®-M0	24 MHz	I2C IrDA LINbus Microwire SmartCard SPI SSP UART/USART	16 KB	85 °C	-40 °C					4K x 8		32-Bit Single-Core	Brown-out Detect/Reset CapSense LCD LVD POR PWM WDT	A/D D/A IDAC SAR	2 8 12 b

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2000	$ 1.45

Description

General part information

CY8C4124 Series

ARM® Cortex®-M0+ PSOC® 4 CY8C4100S Microcontroller IC 32-Bit Single-Core 24MHz 16KB (16K x 8) FLASH 35-WLCSP (2.58x2.1)
