102617-8

Active

TE Connectivity AMP Connectors

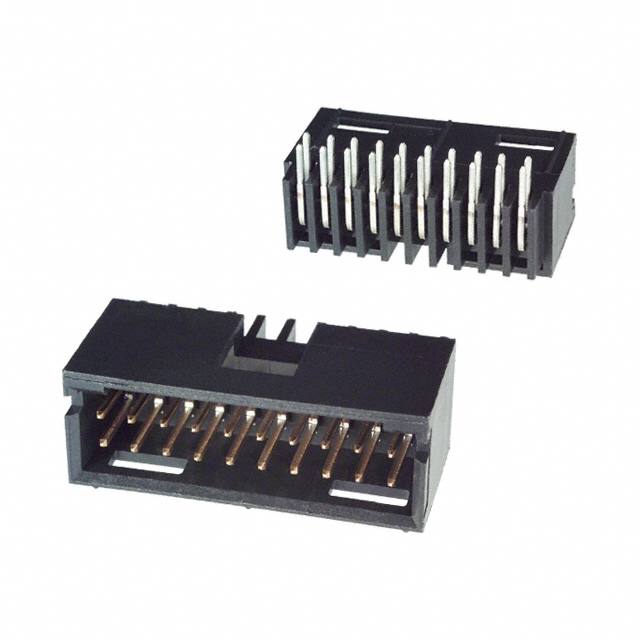

CONN HEADER R/A 20POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

102617-8

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 20POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	102617-8	102617 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin-Lead	Tin-Lead, Tin
Contact Finish Thickness - Mating	15 µin	15 µin
Contact Finish Thickness - Mating	0.38 µm	0.38 µm
Contact Finish Thickness - Post	2.54 µm	2.54 µm
Contact Finish Thickness - Post	100 µin	100 µin
Contact Length - Mating [x]	0.318 "	0.318 "
Contact Length - Mating [x]	8.08 mm	8.08 mm
Contact Length - Post [x]	0.135 in	0.135 in
Contact Length - Post [x]	3.43 mm	3.43 mm
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	3 A	3 A
Fastening Type	Detent Lock	Detent Lock
Insulation Color	Black	Black
Insulation Height	0.4 in	0.4 in
Insulation Height	10.16 mm	10.16 mm
Insulation Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	20	6 - 60
Number of Positions	-	16
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

102617 Series

CONN HEADER R/A 16POS 2.54MM

Part	Insulation Material	Material Flammability Rating	Contact Material	Contact Type	Number of Rows	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Current Rating (Amps)	Connector Type	Pitch - Mating	Pitch - Mating	Style	Number of Positions	Contact Shape	Fastening Type	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Termination	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Mating [x]	Contact Length - Mating [x]	Shrouding	Insulation Height	Insulation Height	Number of Positions
TE Connectivity AMP Connectors 102617-6	Thermoplastic	UL94 V-0	Phosphor Bronze	Male Pin	2	2.54 mm	0.1 in	3 A	Header	0.1 in	2.54 mm	Board to Board, Cable	16	Square	Detent Lock	0.135 in	3.43 mm	All	-65 ░C	105 ░C	Gold	Tin-Lead	15 µin	0.38 µm	Through Hole, Right Angle	Solder	Black	2.54 µm	100 µin	0.318 "	8.08 mm	Shrouded - 4 Wall	0.4 in	10.16 mm
TE Connectivity AMP Connectors 1-102617-5	Thermoplastic	UL94 V-0	Phosphor Bronze	Male Pin	2	2.54 mm	0.1 in	3 A	Header	0.1 in	2.54 mm	Board to Board, Cable		Square	Detent Lock	0.135 in	3.43 mm	All	-65 ░C	105 ░C	Gold	Tin-Lead	15 µin	0.38 µm	Through Hole, Right Angle	Solder	Black	2.54 µm	100 µin	0.318 "	8.08 mm	Shrouded - 4 Wall	0.4 in	10.16 mm	34
TE Connectivity AMP Connectors 6-102617-4	Thermoplastic	UL94 V-0	Phosphor Bronze	Male Pin	2	2.54 mm	0.1 in	3 A	Header	0.1 in	2.54 mm	Board to Board, Cable		Square	Detent Lock	0.135 in	3.43 mm	All	-65 ░C	105 ░C	Gold	Tin	15 µin	0.38 µm	Through Hole, Right Angle	Solder	Black	2.54 µm	100 µin	0.318 "	8.08 mm	Shrouded - 4 Wall	0.4 in	10.16 mm
TE Connectivity AMP Connectors 102617-3	Thermoplastic	UL94 V-0	Phosphor Bronze	Male Pin	2	2.54 mm	0.1 in	3 A	Header	0.1 in	2.54 mm	Board to Board, Cable		Square	Detent Lock	0.135 in	3.43 mm	All	-65 ░C	105 ░C	Gold	Tin-Lead	15 µin	0.38 µm	Through Hole, Right Angle	Solder	Black	2.54 µm	100 µin	0.318 "	8.08 mm	Shrouded - 4 Wall	0.4 in	10.16 mm	10
TE Connectivity AMP Connectors 2-102617-3	Thermoplastic	UL94 V-0	Phosphor Bronze	Male Pin	2	2.54 mm	0.1 in	3 A	Header	0.1 in	2.54 mm	Board to Board, Cable		Square	Detent Lock	0.135 in	3.43 mm	All	-65 ░C	105 ░C	Gold	Tin-Lead	15 µin	0.38 µm	Through Hole, Right Angle	Solder	Black	2.54 µm	100 µin	0.318 "	8.08 mm	Shrouded - 4 Wall	0.4 in	10.16 mm	50
TE Connectivity AMP Connectors 102617-8	Thermoplastic	UL94 V-0	Phosphor Bronze	Male Pin	2	2.54 mm	0.1 in	3 A	Header	0.1 in	2.54 mm	Board to Board, Cable		Square	Detent Lock	0.135 in	3.43 mm	All	-65 ░C	105 ░C	Gold	Tin-Lead	15 µin	0.38 µm	Through Hole, Right Angle	Solder	Black	2.54 µm	100 µin	0.318 "	8.08 mm	Shrouded - 4 Wall	0.4 in	10.16 mm	20
TE Connectivity AMP Connectors 5-102617-2	Thermoplastic	UL94 V-0	Phosphor Bronze	Male Pin	2	2.54 mm	0.1 in	3 A	Header	0.1 in	2.54 mm	Board to Board, Cable		Square	Detent Lock	0.135 in	3.43 mm	All	-65 ░C	105 ░C	Gold	Tin	15 µin	0.38 µm	Through Hole, Right Angle	Solder	Black	2.54 µm	100 µin	0.318 "	8.08 mm	Shrouded - 4 Wall	0.4 in	10.16 mm	8
TE Connectivity AMP Connectors 5-102617-8	Thermoplastic	UL94 V-0	Phosphor Bronze	Male Pin	2	2.54 mm	0.1 in	3 A	Header	0.1 in	2.54 mm	Board to Board, Cable		Square	Detent Lock	0.135 in	3.43 mm	All	-65 ░C	105 ░C	Gold	Tin	15 µin	0.38 µm	Through Hole, Right Angle	Solder	Black	2.54 µm	100 µin	0.318 "	8.08 mm	Shrouded - 4 Wall	0.4 in	10.16 mm	20
TE Connectivity AMP Connectors 7-102617-8	Thermoplastic	UL94 V-0	Phosphor Bronze	Male Pin	2	2.54 mm	0.1 in	3 A	Header	0.1 in	2.54 mm	Board to Board, Cable		Square	Detent Lock	0.135 in	3.43 mm	All	-65 ░C	105 ░C	Gold	Tin	15 µin	0.38 µm	Through Hole, Right Angle	Solder	Black	2.54 µm	100 µin	0.318 "	8.08 mm	Shrouded - 4 Wall	0.4 in	10.16 mm	60
TE Connectivity AMP Connectors 5-102617-3	Thermoplastic	UL94 V-0	Phosphor Bronze	Male Pin	2	2.54 mm	0.1 in	3 A	Header	0.1 in	2.54 mm	Board to Board, Cable		Square	Detent Lock	0.135 in	3.43 mm	All	-65 ░C	105 ░C	Gold	Tin	15 µin	0.38 µm	Through Hole, Right Angle	Solder	Black	2.54 µm	100 µin	0.318 "	8.08 mm	Shrouded - 4 Wall	0.4 in	10.16 mm	10
TE Connectivity AMP Connectors 6-102617-0	Thermoplastic	UL94 V-0	Phosphor Bronze	Male Pin	2	2.54 mm	0.1 in	3 A	Header	0.1 in	2.54 mm	Board to Board, Cable		Square	Detent Lock	0.135 in	3.43 mm	All	-65 ░C	105 ░C	Gold	Tin	15 µin	0.38 µm	Through Hole, Right Angle	Solder	Black	2.54 µm	100 µin	0.318 "	8.08 mm	Shrouded - 4 Wall	0.4 in	10.16 mm	24
TE Connectivity AMP Connectors 102617-4	Thermoplastic	UL94 V-0	Phosphor Bronze	Male Pin	2	2.54 mm	0.1 in	3 A	Header	0.1 in	2.54 mm	Board to Board, Cable		Square	Detent Lock	0.135 in	3.43 mm	All	-65 ░C	105 ░C	Gold	Tin-Lead	15 µin	0.38 µm	Through Hole, Right Angle	Solder	Black	2.54 µm	100 µin	0.318 "	8.08 mm	Shrouded - 4 Wall	0.4 in	10.16 mm	12
TE Connectivity AMP Connectors 1-102617-1	Thermoplastic	UL94 V-0	Phosphor Bronze	Male Pin	2	2.54 mm	0.1 in	3 A	Header	0.1 in	2.54 mm	Board to Board, Cable		Square	Detent Lock	0.135 in	3.43 mm	All	-65 ░C	105 ░C	Gold	Tin-Lead	15 µin	0.38 µm	Through Hole, Right Angle	Solder	Black	2.54 µm	100 µin	0.318 "	8.08 mm	Shrouded - 4 Wall	0.4 in	10.16 mm	26
TE Connectivity AMP Connectors 5-102617-6	Thermoplastic	UL94 V-0	Phosphor Bronze	Male Pin	2	2.54 mm	0.1 in	3 A	Header	0.1 in	2.54 mm	Board to Board, Cable	16	Square	Detent Lock	0.135 in	3.43 mm	All	-65 ░C	105 ░C	Gold	Tin	15 µin	0.38 µm	Through Hole, Right Angle	Solder	Black	2.54 µm	100 µin	0.318 "	8.08 mm	Shrouded - 4 Wall	0.4 in	10.16 mm
TE Connectivity AMP Connectors 102617-5	Thermoplastic	UL94 V-0	Phosphor Bronze	Male Pin	2	2.54 mm	0.1 in	3 A	Header	0.1 in	2.54 mm	Board to Board, Cable		Square	Detent Lock	0.135 in	3.43 mm	All	-65 ░C	105 ░C	Gold	Tin-Lead	15 µin	0.38 µm	Through Hole, Right Angle	Solder	Black	2.54 µm	100 µin	0.318 "	8.08 mm	Shrouded - 4 Wall	0.4 in	10.16 mm	14
TE Connectivity AMP Connectors 102617-1	Thermoplastic	UL94 V-0	Phosphor Bronze	Male Pin	2	2.54 mm	0.1 in	3 A	Header	0.1 in	2.54 mm	Board to Board, Cable		Square	Detent Lock	0.135 in	3.43 mm	All	-65 ░C	105 ░C	Gold	Tin-Lead	15 µin	0.38 µm	Through Hole, Right Angle	Solder	Black	2.54 µm	100 µin	0.318 "	8.08 mm	Shrouded - 4 Wall	0.4 in	10.16 mm	6

Description

General part information

102617 Series

Connector Header Through Hole, Right Angle 20 position 0.100" (2.54mm)
