8522 014100

Active

Belden Inc.

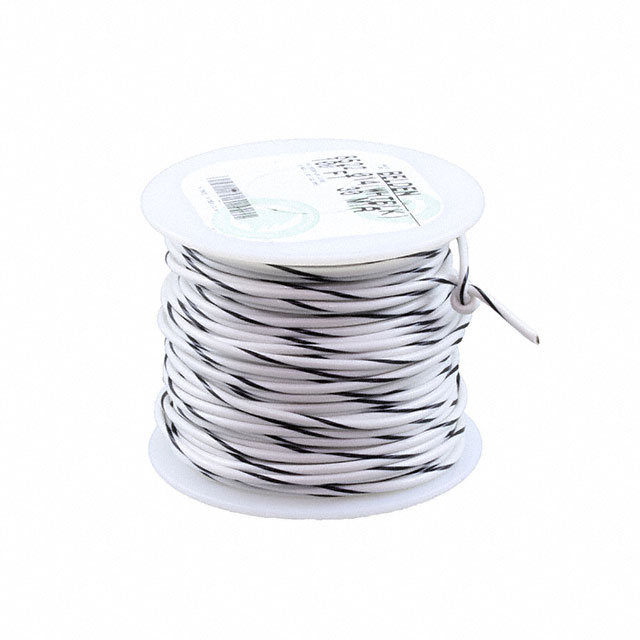

HOOK-UP STRND 18AWG WHITE/BLACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

8522 014100

Active

Belden Inc.

HOOK-UP STRND 18AWG WHITE/BLACK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8522 014100

Cable Type	Hook-Up
Conductor Material	Copper, Tinned
Conductor Strand [custom]	16
Conductor Strand [custom]	30 AWG
Features	Chemical Resistant
Jacket (Insulation) Diameter	0.08 in
Jacket (Insulation) Diameter	2.03 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.017 in
Jacket (Insulation) Thickness	0.43 mm
Jacket Color	White, Black Stripe
Length [x]	30.5 m
Length [x]	100 ft
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Qualification	MIL-W-76C Type MW
Voltage	1000 V
Wire Gauge	18 AWG

8522 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Conductor Material	Jacket Color	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Wire Gauge	Jacket (Insulation) Diameter	Jacket (Insulation) Diameter	Length [x]	Length [x]	Features	Conductor Strand [custom]	Conductor Strand [custom]	Qualification	Voltage	Jacket (Insulation) Material	Length	Length
Belden Inc. 8522 006100	-40 °C	80 C	Hook-Up	Copper Tinned	Blue	0.017 in	0.43 mm	18 AWG	0.08 in	2.03 mm	30.5 m	100 ft	Chemical Resistant	16	30 AWG	MIL-W-76C Type MW	1000 V	Poly-Vinyl Chloride (PVC)
Belden Inc. 8522 0081000	-40 °C	80 C	Hook-Up	Copper Tinned	Gray	0.017 in	0.43 mm	18 AWG	0.08 in	2.03 mm			Chemical Resistant	16	30 AWG	MIL-W-76C Type MW	1000 V	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m
Belden Inc. 8522 0051000	-40 °C	80 C	Hook-Up	Copper Tinned	Green	0.017 in	0.43 mm	18 AWG	0.08 in	2.03 mm			Chemical Resistant	16	30 AWG	MIL-W-76C Type MW	1000 V	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m
Belden Inc. 8522 003100	-40 °C	80 C	Hook-Up	Copper Tinned	Orange	0.017 in	0.43 mm	18 AWG	0.08 in	2.03 mm	30.5 m	100 ft	Chemical Resistant	16	30 AWG	MIL-W-76C Type MW	1000 V	Poly-Vinyl Chloride (PVC)
Belden Inc. 8522 0031000	-40 °C	80 C	Hook-Up	Copper Tinned	Orange	0.017 in	0.43 mm	18 AWG	0.08 in	2.03 mm			Chemical Resistant	16	30 AWG	MIL-W-76C Type MW	1000 V	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m
Belden Inc. 8522 0011000	-40 °C	80 C	Hook-Up	Copper Tinned	Brown	0.017 in	0.43 mm	18 AWG	0.08 in	2.03 mm			Chemical Resistant	16	30 AWG	MIL-W-76C Type MW	1000 V	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m
Belden Inc. 8522 0111000	-40 °C	80 C	Hook-Up	Copper Tinned	Tan	0.017 in	0.43 mm	18 AWG	0.08 in	2.03 mm			Chemical Resistant	16	30 AWG	MIL-W-76C Type MW	1000 V	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m
Belden Inc. 8522 007100	-40 °C	80 C	Hook-Up	Copper Tinned	Violet	0.017 in	0.43 mm	18 AWG	0.08 in	2.03 mm	30.5 m	100 ft	Chemical Resistant	16	30 AWG	MIL-W-76C Type MW	1000 V	Poly-Vinyl Chloride (PVC)
Belden Inc. 8522 014100	-40 °C	80 C	Hook-Up	Copper Tinned	White Black Stripe	0.017 in	0.43 mm	18 AWG	0.08 in	2.03 mm	30.5 m	100 ft	Chemical Resistant	16	30 AWG	MIL-W-76C Type MW	1000 V	Poly-Vinyl Chloride (PVC)
Belden Inc. 8522 004100	-40 °C	80 C	Hook-Up	Copper Tinned	Yellow	0.017 in	0.43 mm	18 AWG	0.08 in	2.03 mm	30.5 m	100 ft	Chemical Resistant	16	30 AWG	MIL-W-76C Type MW	1000 V	Poly-Vinyl Chloride (PVC)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	100	$ 1.60
		200	$ 1.54
		300	$ 1.48
		500	$ 1.43

Description

General part information

8522 Series

18 AWG Hook-Up Wire 16/30 White, Black Stripe 1000V 100.0' (30.5m)
