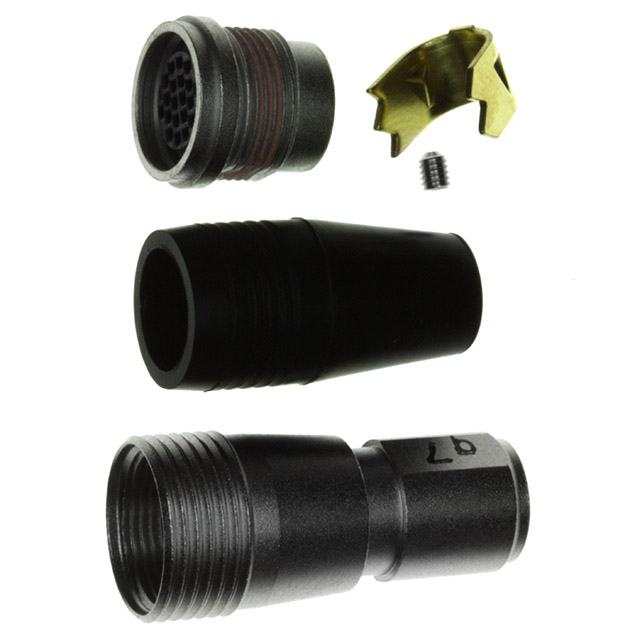

Specification	HR25A-9J-20SC

Connector Type	Jack Housing
Contact Shape	Circular
Contact Type	Crimp
Fastening Type	Push-Pull
Features	Cable Clamp, Backshell, Strain Relief
Housing Color	Silver
Insert Material	Polyphenylene Sulfide, PPS
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	20
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	9
Shell Size - Insert	9
Shielding	Unshielded
Type	For Female Sockets

HR25A Series

Part	Voltage Rating (AC)	Voltage Rating (DC)	Orientation	Mounting Feature	Contact Material	Primary Material	Operating Temperature (Max)	Operating Temperature (Min)	Shell Finish	Shell Size - Insert	Shell Size - Insert	Connector Type	Fastening Type	Contact Finish Thickness - Mating	Termination	Contact Finish - Mating	Current Rating	Color	Number of Positions	Shell Material	Applications	Insert Material	Material Flammability Rating	Mounting Type	Plating	Backshell Material	Features	Contact Shape	Type	Shielding	Housing Color	Contact Type	Note
Hirose Electric Co Ltd HR25A-9R-12PA	30 VAC	42 VDC	Keyed	Bulkhead Rear Side Nut	Phosphor Bronze	Metal	85 °C	-25 °C	Nickel	9	9	Male Pins Receptacle	Push-Pull	8 µin	Solder	Gold	1 A	Silver	12	Zinc Alloy	Industrial	Polyphenylene Sulfide PPS	UL94 V-0	Panel Mount Through Hole
Hirose Electric Co Ltd HR25A-9J-20P	30 VAC	42 VDC	Keyed		Phosphor Bronze	Metal	85 °C	-25 °C	Nickel	9	9	Jack Male Pins	Push-Pull	8 µin	Solder Cup	Gold	1 A	Black Silver	20	Zinc Alloy	Industrial	Polyphenylene Sulfide PPS	UL94 V-0	Free Hanging (In-Line)	Nickel	Brass	Backshell Clamp Strain Relief
Hirose Electric Co Ltd HR25A-7R-6SA	30 VAC	42 VDC	Keyed	Bulkhead Rear Side Nut	Phosphor Bronze	Metal	85 °C	-25 °C	Nickel	7	7	Female Sockets Receptacle	Push-Pull	8 µin	Solder	Gold	1 A	Silver	6	Zinc Alloy	Industrial	Polyphenylene Sulfide PPS	UL94 V-0	Panel Mount Through Hole
Hirose Electric Co Ltd HR25A-7R-8S	30 VAC	42 VDC	Keyed	Bulkhead Rear Side Nut	Phosphor Bronze	Metal	85 °C	-25 °C	Nickel	7	7	Female Sockets Receptacle	Push-Pull	8 µin	Solder Cup	Gold	1 A	Silver	8	Zinc Alloy	Industrial	Polyphenylene Sulfide PPS	UL94 V-0	Panel Mount
Hirose Electric Co Ltd HR25A-9J-20S	30 VAC	42 VDC	Keyed		Phosphor Bronze	Metal	85 °C	-25 °C	Nickel	9	9	Female Sockets Jack	Push-Pull	8 µin	Solder Cup	Gold	1 A	Black Silver	20	Zinc Alloy	Industrial	Polyphenylene Sulfide PPS	UL94 V-0	Free Hanging (In-Line)	Nickel	Brass	Backshell Clamp Strain Relief
Hirose Electric Co Ltd HR25A-7R-6P	30 VAC	42 VDC	Keyed	Bulkhead Rear Side Nut	Phosphor Bronze	Metal	85 °C	-25 °C	Nickel	7	7	Male Pins Receptacle	Push-Pull	8 µin	Solder Cup	Gold	1 A	Silver	6	Zinc Alloy	Industrial	Polyphenylene Sulfide PPS	UL94 V-0	Panel Mount
Hirose Electric Co Ltd HR25A-9P-20P	30 VAC	42 VDC	Keyed		Phosphor Bronze	Metal	85 °C	-25 °C	Nickel	9	9	Male Pins Plug	Push-Pull	8 µin	Solder Cup	Gold	1 A	Black Silver	20	Zinc Alloy	Industrial	Polyphenylene Sulfide PPS	UL94 V-0	Free Hanging (In-Line)	Nickel	Brass	Backshell Clamp Strain Relief
Hirose Electric Co Ltd HR25A-9R-20P	30 VAC	42 VDC	Keyed	Bulkhead Rear Side Nut	Phosphor Bronze	Metal	85 °C	-25 °C	Nickel	9	9	Male Pins Receptacle	Push-Pull	8 µin	Solder Cup	Gold	1 A	Silver	20	Zinc Alloy	Industrial	Polyphenylene Sulfide PPS	UL94 V-0	Panel Mount
Hirose Electric Co Ltd HR25A-9R-20SC			Keyed	Bulkhead Rear Side Nut			85 °C	-25 °C	Nickel	9	9	Receptacle Housing	Push-Pull						20	Zinc Alloy		Polyphenylene Sulfide PPS	UL94 V-0	Panel Mount				Circular	For Female Sockets	Unshielded	Silver	Crimp	Contacts Not Included
Hirose Electric Co Ltd HR25A-7P-4P	30 VAC	42 VDC	Keyed		Phosphor Bronze	Metal	85 °C	-25 °C	Nickel	7	7	Male Pins Plug	Push-Pull	8 µin	Solder Cup	Gold	1 A	Black Silver	4	Zinc Alloy	Industrial	Polyphenylene Sulfide PPS	UL94 V-0	Free Hanging (In-Line)	Nickel	Brass	Backshell Clamp Strain Relief
