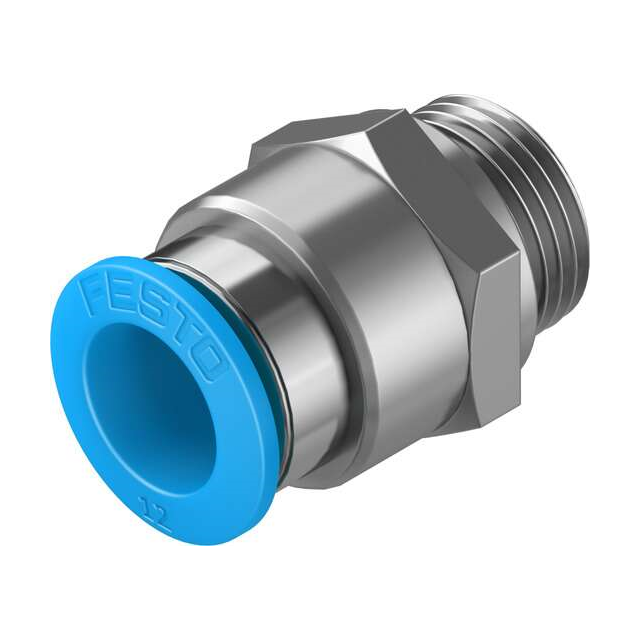

QS-G3/8-12
ActiveFesto Corporation
PUSH-IN FITTING, 12MM, G3/8 ROHS COMPLIANT: YES
QS-G3/8-12
ActiveFesto Corporation
PUSH-IN FITTING, 12MM, G3/8 ROHS COMPLIANT: YES
Description
General part information
QS-G3/8-12
PUSH-IN FITTING, 12MM, G3/8 ROHS COMPLIANT: YES
Technical Specifications
Parameters and characteristics for this part
| Specification | QS-G3/8-12 |
|---|---|
| Connection Method | Threaded, Push-In |
| For Use With/Related Products | 12mm OD Tubing |
| Material | Nickel Plated Brass |
| Mounting Type | Free Hanging (In-Line) |
| Operating Pressure (Max) | 87 PSI |
| Operating Pressure (Min) | -14 PSI |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -10 °C |
| Thread Size | G3/8 |
| Type | Straight Fitting |
