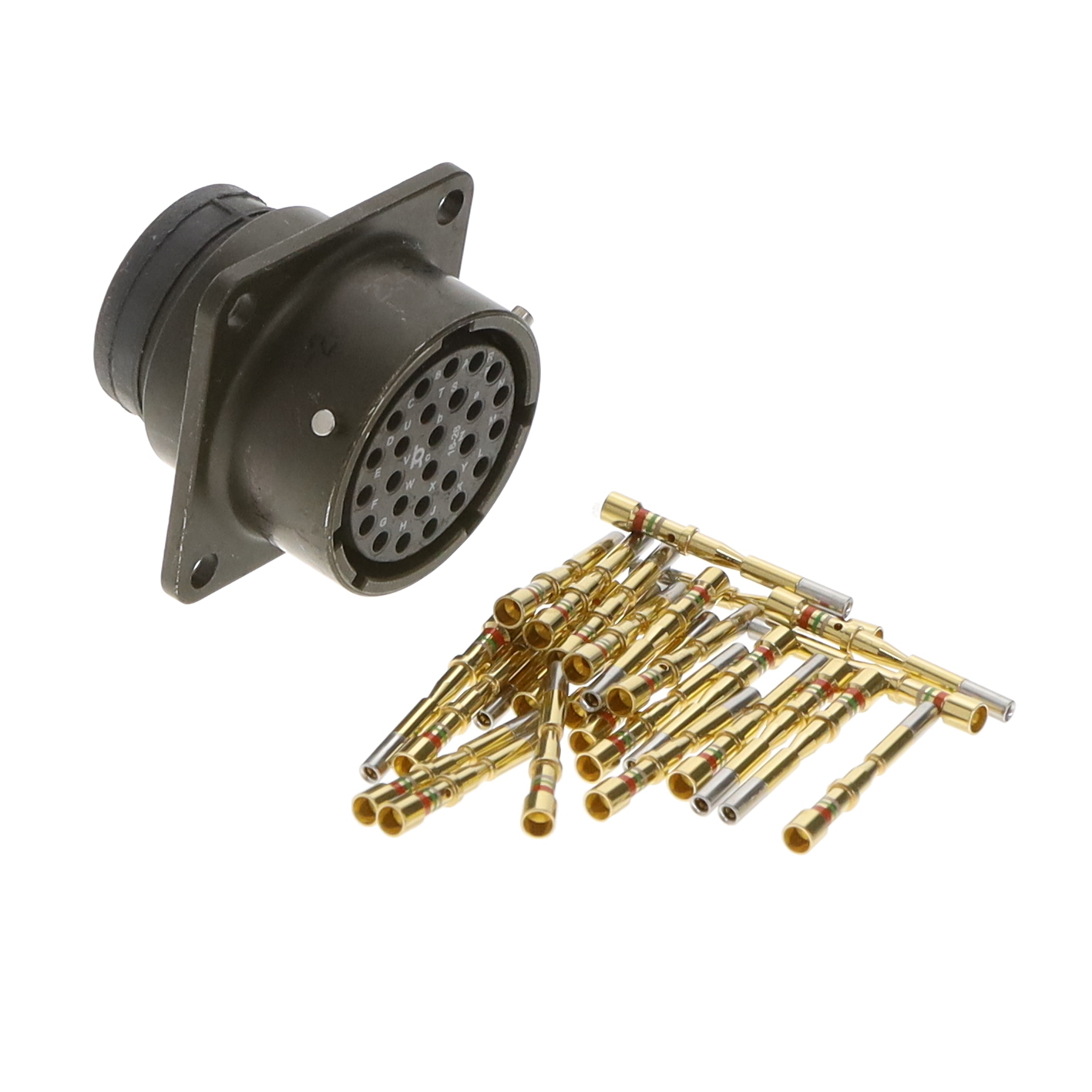

KPSE02E16-26S
26 Position Circular Connector Receptacle, Female Sockets Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | KPSE02E16-26S |
|---|---|
| Color | Olive Drab |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 50 µin |
| Current Rating | 7.5 A |
| Fastening Type | Bayonet Lock |
| Ingress Protection | Environment Resistant |
| Mounting Feature | Flange |
| Mounting Type | Panel Mount |
| Number of Positions | 26 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Shell Finish | Olive Drab Cadmium |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert (Maximum) | 26 |
| Shell Size - Insert (Minimum) | 16 S |
| Termination | Crimp |
| Voltage Rating (AC) | 600 VAC |
| Voltage Rating (DC) | 850 VDC |
