917251-5

Active

TE Connectivity AMP Connectors

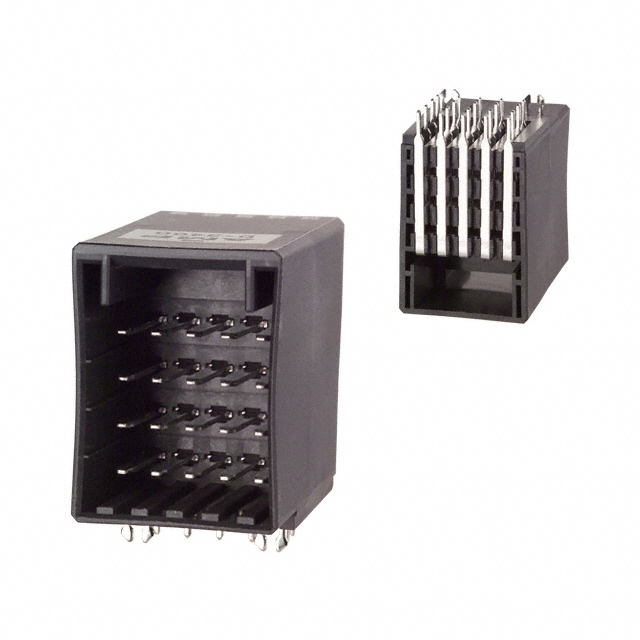

CONN HEADER R/A 20POS 3.81MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 20POS 3.81MM

Technical Specifications

Parameters and characteristics for this part

Specification	917251-5

Applications	General Purpose, Industrial
Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	78.7 µin
Contact Finish Thickness - Mating	2 µm
Contact Length - Post [x]	0.15 in
Contact Length - Post [x]	3.81 mm
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Tab
Fastening Type	Detent Lock
Insulation Color	Black
Insulation Height	31.6 mm
Insulation Height	1.244 in
Insulation Material	Thermoplastic, Glass Filled, Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	20
Number of Positions Loaded	All
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	3.81 mm
Pitch - Mating	0.15 in
Row Spacing - Mating [x]	5.08 mm
Row Spacing - Mating [x]	0.2 "
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	250 VDC

CONN HEADER R/A 20POS 3.81MM

Part	Connector Type	Contact Finish - Post	Shrouding	Pitch - Mating	Pitch - Mating	Termination	Applications	Material Flammability Rating	Insulation Color	Contact Material	Voltage Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Mounting Type	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Style	Number of Positions Loaded	Number of Positions	Contact Type	Insulation Material	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape
TE Connectivity AMP Connectors 917251-5	Header	Tin	Shrouded - 4 Wall	3.81 mm	0.15 in	Solder	General Purpose, Industrial	UL94 V-0	Black	Copper Alloy	250 VDC	5.08 mm	0.2 "	Through Hole, Right Angle	Detent Lock	105 ░C	-55 °C	Board to Board, Cable	All	20	Tab	Glass Filled, Polyester, Thermoplastic	0.15 in	3.81 mm	31.6 mm	1.244 in	78.7 µin	2 µm	Rectangular

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5600	$ 3.86

General part information

Connector Header Through Hole, Right Angle 20 position 0.150" (3.81mm)
