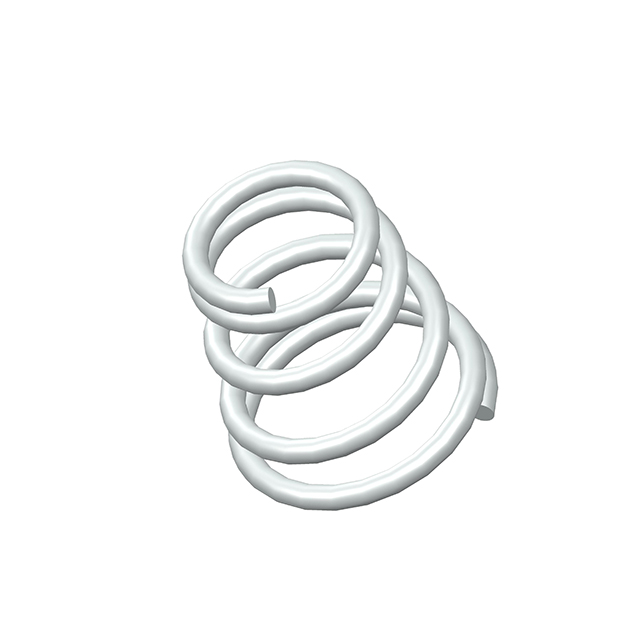

TA-2354CS
ActiveCentury Spring Corp
LO= 0.375, SO= 0.266, W= 0.035
TA-2354CS
ActiveCentury Spring Corp
LO= 0.375, SO= 0.266, W= 0.035
Description
General part information
TA-2354CS
LO= 0.375, SO= 0.266, W= 0.035
Technical Specifications
Parameters and characteristics for this part
| Specification | TA-2354CS |
|---|---|
| Diameter - Inside | 0.2 in |
| Diameter - Large Outside | 0.375 in |
| Diameter - Small Outside | 0.266 in |
| End Style | Closed |
| Finish | None |
| Free Length | 0.42 in |
| Material | Stainless Steel |
| Rate (lbs/in) | 32.2 lbs/in |
| Type | Tapered |
| Wire Diameter | 0.035 in |
