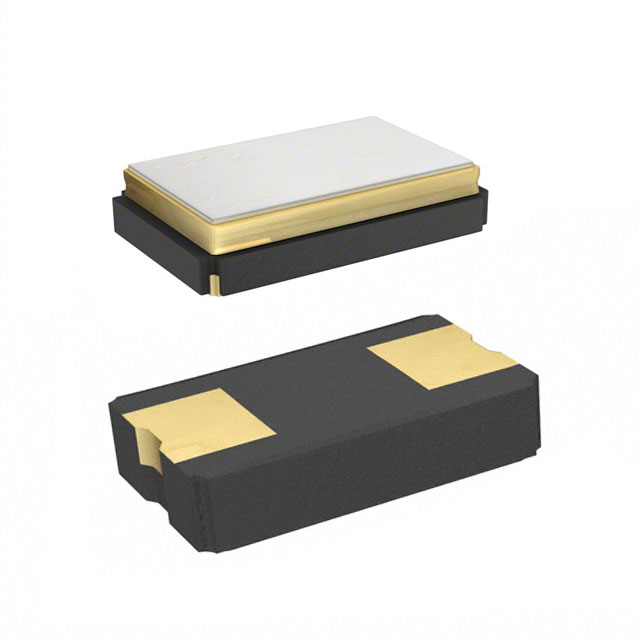

SA532140F35HLR
ActiveCTS-Frequency Controls
CRYSTAL 14.0000MHZ 12PF SMD
SA532140F35HLR
ActiveCTS-Frequency Controls
CRYSTAL 14.0000MHZ 12PF SMD
Description
General part information
SA532140F35HLR
14 MHz ±30ppm Crystal 12pF 50 Ohms 2-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | SA532140F35HLR |
|---|---|
| ESR (Equivalent Series Resistance) | 50 Ohm |
| Frequency | 14 MHz |
| Frequency Stability | 50 ppm |
| Frequency Tolerance | 30 ppm |
| Height - Seated (Max) | 0.043 in |
| Load Capacitance | 12 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | No Lead, 2-SMD |
| Package Length | 5 mm |
| Package Name | 2-SMD |
| Package Width | 3.2 mm |
| Ratings | AEC-Q200 |
| Size / Dimension Length | 0.197 in |
| Size / Dimension Width | 0.126 in |
| Type | MHz Crystal |
