Technical Specifications
Parameters and characteristics for this part
| Specification | 1004KL-04W-B59-B00 |
|---|---|
| Air Flow | 0.056 mł/min |
| Air Flow | 2 CFM |
| Approval Agency | UL, CE, VDE, CSA |
| Bearing Type | Ball |
| Current Rating (Amps) | 60 mA |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Sensor |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 25 dB(A) |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 720 mW |
| RPM | 11000 RPM |
| Size / Dimension [x] | 25 mm |
| Size / Dimension [z] | 25 mm |
| Static Pressure | 50.6 Pa |
| Static Pressure | 0.203 in H2O |
| Termination | 3 Wire Leads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 13.8 VDC |
| Voltage Range [Min] | 8 VDC |
| Weight | 7.71 g |
| Weight | 0.017 lb |
| Width [y] | 10 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information

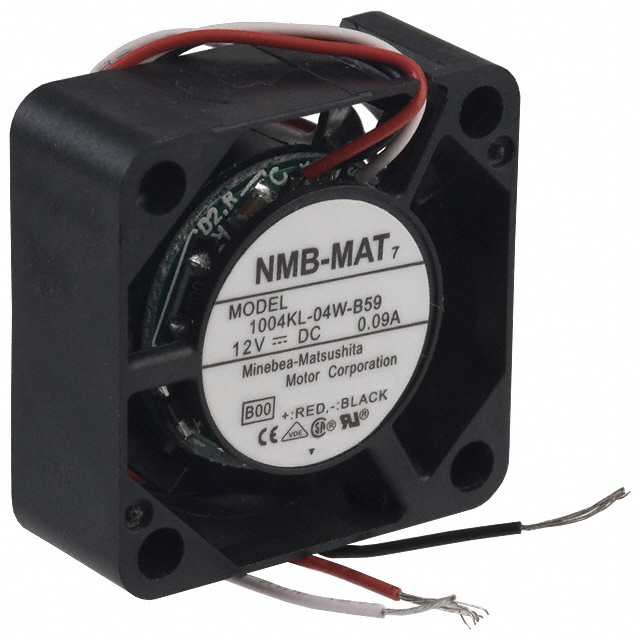

1004KL-04W-B59-B00
Fan Tubeaxial 12VDC Square - 25mm L x 25mm H Ball 2.0 CFM (0.056mł/min) 3 Wire Leads
