Description
General part information

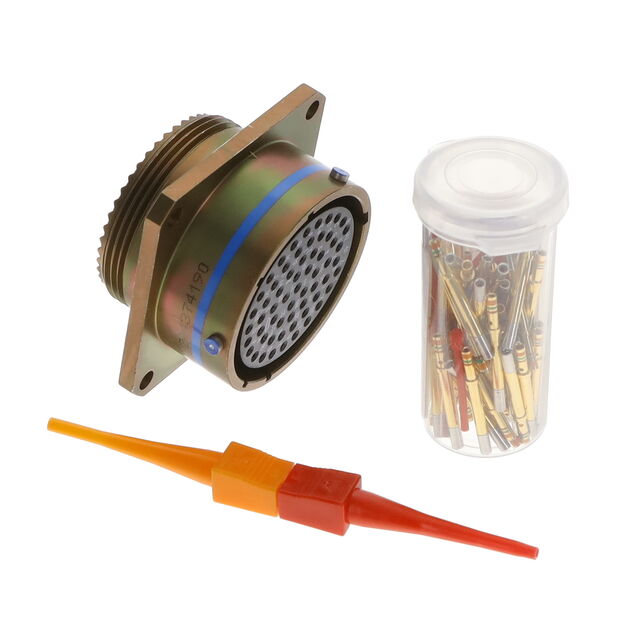

MS27466E25A61SA
61 Position Circular Connector Receptacle, Female Sockets Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | MS27466E25A61SA |
|---|---|
| Applications | Aviation, Military |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 50 µin |
| Contact Material | Copper Alloy |
| Fastening Type | Bayonet Lock |
| Ingress Protection | Environment Resistant |
| Mounting Feature | Flange |
| Mounting Type | Panel Mount |
| Number of Positions | 61 |
| Operating Temperature (Max) | 175 °C |
| Operating Temperature (Min) | -65 °C |
| Orientation | A |
| Primary Material | Metal |
| Shell Material | Aluminum |
| Shell Size - Insert (Maximum) | 61 |
| Shell Size - Insert (Minimum) | 25 |
| Shielding | Unshielded |
| Termination | Crimp |
