Description
General part information
AEARBD048014-SG3

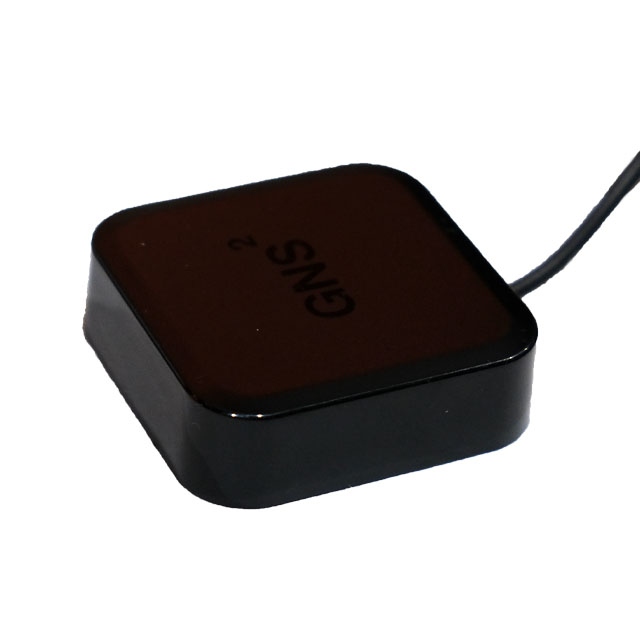

RF ANTENNA Beidou, Galileo, GLONASS, GNSS, GPS Puck SMA Magnetic
Technical Specifications
Parameters and characteristics for this part
| Specification | AEARBD048014-SG3 |
|---|---|
| Antenna Type | Puck |
| Applications | GLONASS, GNSS, Galileo, BEIDOU, GPS |
| Features | Cable, LNA, 5m |
| Frequency (Center/Band) | 1.575GHz, 1.602GHz, 1.561GHz |
| Frequency (Center/Band) - 1 | 1.561 GHz |
| Frequency (Center/Band) - 2 | 1.575 GHz |
| Frequency (Center/Band) - 3 | 1.602 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 2 GHz |
| Frequency Group Minimum (UHF) | 1 GHz |
| Frequency Range (Max) | 1.61 GHz |
| Frequency Range (Min) | 1.559 GHz |
| Gain | 4.27 dBi, 5.65 dBi, 5.78 dBi |
| Height (Max) | 0.551 in |
| Mounting Type | Magnetic |
| Number of Bands | 1 |
| RF Family/Standard | Navigation |
| Termination | SMA |
| VSWR | 2 |
