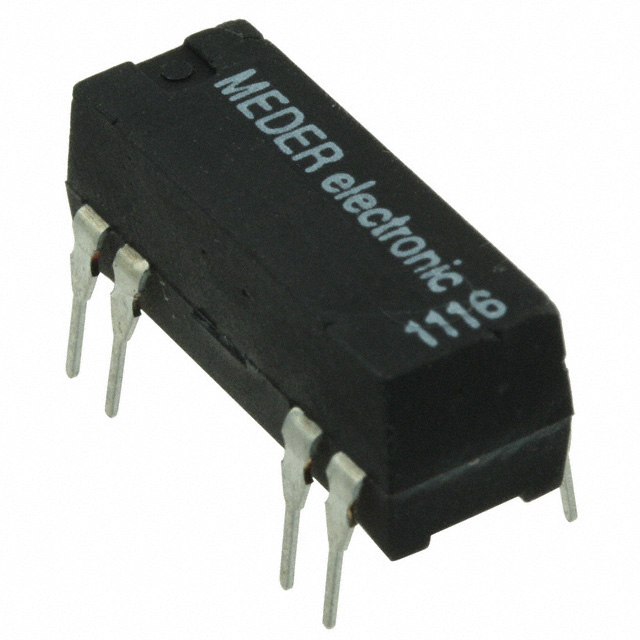

DIP12-1A72-12L
ActiveStandex-Meder Electronics
RELAY REED SPST 1A 12V
DIP12-1A72-12L
ActiveStandex-Meder Electronics
RELAY REED SPST 1A 12V
Description
General part information
DIP12-1A72-12L
RELAY REED SPST 1A 12V
Technical Specifications
Parameters and characteristics for this part
| Specification | DIP12-1A72-12L |
|---|---|
| Coil Current | 12 mA |
| Coil Resistance | 1 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VAC |
| Contact Form | SPST-NO |
| Contact Rating (Current) | 1 A |
| Form A Count | 1 |
| Mounting Type | Through Hole |
| Must Operate Voltage | 8.4 VAC |
| Must Release Voltage | 1.8 VAC |
| Operate Time | 0.5 ms |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Release Time | 0.1 ms |
| Switching Voltage AC (Max) | 200 VAC |
| Switching Voltage DC (Max) | 200 VDC |
| Termination Style | PC Pin |
