387-031-558-612
ActiveEDAC Inc.

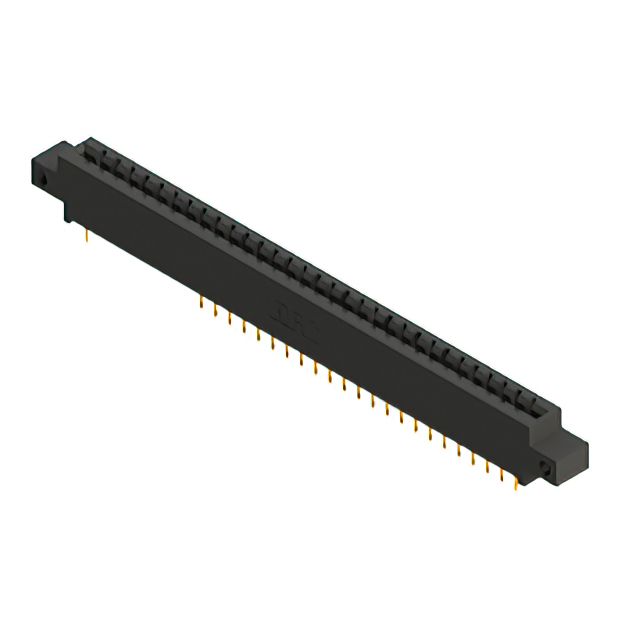

CONN EDGE SGL FMALE 31POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
387-031-558-612
ActiveEDAC Inc.
CONN EDGE SGL FMALE 31POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 387-031-558-612 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Side Mount Opening, Unthreaded |
| Flange Feature | 3.25 mm |
| Flange Feature | 0.128 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 31 |
| Number of Positions/Bay/Row [custom] | 31 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
387-031 Series
...
| Part | Material - Insulation | Pitch [x] | Pitch [x] | Contact Finish | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Mounting Type | Number of Rows | Contact Type | Card Type | Termination Rows | Flange Feature | Contact Material | Number of Positions | Gender | Number of Positions/Bay/Row [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Read Out | Termination | Contact Finish Thickness | Contact Finish Thickness | Color | Flange Feature | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Polyester Thermoplastic | 0.156 in | 3.96 mm | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole Right Angle | 1 | Cantilever | Non Specified - Single Edge | 1 | Flush Mount M3 Threaded Insert Top Opening | Copper Alloy | 31 | Female | 31 | -40 °C | 105 ░C | Single | Wire Wrap | 10 Áin | 0.25 Ám | Black | ||||
EDAC Inc. | Polyester Thermoplastic | 0.156 in | 3.96 mm | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole Right Angle | 1 | Cantilever | Non Specified - Single Edge | 1 | Side Mount Opening Unthreaded | Copper Alloy | 31 | Female | 31 | -40 °C | 105 ░C | Single | Wire Wrap | 10 Áin | 0.25 Ám | Black | 3.25 mm | 0.128 in | ||
EDAC Inc. | Polyester Thermoplastic | 0.156 in | 3.96 mm | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 1 | Cantilever | Non Specified - Single Edge | 1 | 4-40 Threaded Insert Top Mount Opening | Copper Alloy | 31 | Female | 31 | -40 °C | 105 ░C | Single | Wire Wrap | 10 Áin | 0.25 Ám | Black | ||||
EDAC Inc. | Polyester Thermoplastic | 0.156 in | 3.96 mm | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 1 | Cantilever | Non Specified - Single Edge | 1 | 4-40 Threaded Insert Top Mount Opening | Copper Alloy | 31 | Female | 31 | -40 °C | 105 ░C | Single | Solder | 10 Áin | 0.25 Ám | Black | ||||
EDAC Inc. | Polyester Thermoplastic | 0.156 in | 3.96 mm | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 1 | Cantilever | Non Specified - Single Edge | 1 | Flush Mount Side Opening Unthreaded | Copper Alloy | 31 | Female | 31 | -40 °C | 105 ░C | Single | Solder | 10 Áin | 0.25 Ám | Black | 3.25 mm | 0.128 " | ||
EDAC Inc. | Polyester Thermoplastic | 0.156 in | 3.96 mm | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 1 | Cantilever | Non Specified - Single Edge | 1 | Floating Bobbin Flush Mount | Copper Alloy | 31 | Female | 31 | -40 °C | 105 ░C | Single | Wire Wrap | 10 Áin | 0.25 Ám | Black | 2.95 mm | 0.116 in | ||
EDAC Inc. | Polyester Thermoplastic | 0.156 in | 3.96 mm | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 1 | Cantilever | Non Specified - Single Edge | 1 | Copper Alloy | 31 | Female | 31 | -40 °C | 105 ░C | Single | Solder | 10 Áin | 0.25 Ám | Black | |||||
EDAC Inc. | Polyester Thermoplastic | 0.156 in | 3.96 mm | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 1 | Cantilever | Non Specified - Single Edge | 1 | Top Mount Opening Unthreaded | Copper Alloy | 31 | Female | 31 | -40 °C | 105 ░C | Single | Solder | 10 Áin | 0.25 Ám | Black | 3.96 mm | 0.156 in | ||
EDAC Inc. | Polyester Thermoplastic | 0.156 in | 3.96 mm | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 1 | Cantilever | Non Specified - Single Edge | 1 | Floating Bobbin Top Mount Opening | Copper Alloy | 31 | Female | 31 | -40 °C | 105 ░C | Single | Solder | 10 Áin | 0.25 Ám | Black | 2.95 mm | 0.116 in | ||
EDAC Inc. | Polyester Thermoplastic | 0.156 in | 3.96 mm | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 1 | Cantilever | Non Specified - Single Edge | 1 | Floating Bobbin Flush Mount | Copper Alloy | 31 | Female | 31 | -40 °C | 105 ░C | Single | Wire Wrap | 10 Áin | 0.25 Ám | Black | 2.95 mm | 0.116 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
387-031 Series
31 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Black
