Specification	0022232111

Applications	Medical, Automotive, Telecommunications, General Purpose
Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	100 µin
Contact Finish Thickness - Post	100 Ąin
Contact Length - Mating	0.295 in
Contact Length - Post	0.14 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Friction Lock
Insulation Color	White
Insulation Height	0.322 in
Insulation Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	11
Number of Positions Loaded	All
Number of Rows	1
Overall Contact Length	0.56 in
Pitch - Mating	0.1 in
Shrouding	Shrouded - 1 Wall
Style	Board, Board or Cable
Termination	Solder

002223 Series

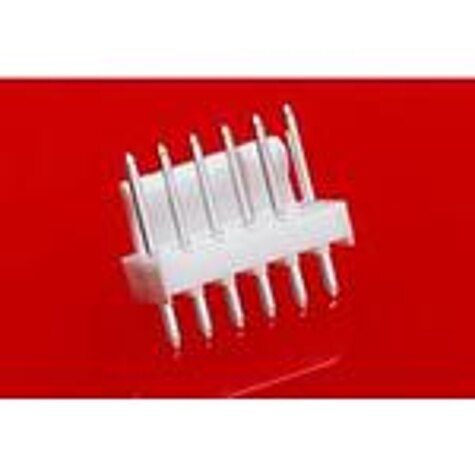

Headers & Wire Housings KK 100 Hdr FrLk Vert 11 Ckt Tin

...

Part	Contact Finish Thickness - Post	Applications	Connector Type	Mounting Type	Number of Positions	Contact Shape	Number of Positions Loaded	Contact Finish - Mating	Termination	Shrouding	Insulation Material	Pitch - Mating	Contact Length - Post	Overall Contact Length	Fastening Type	Contact Length - Mating	Material Flammability Rating	Style	Contact Finish Thickness - Mating	Number of Rows	Contact Material	Insulation Color	Contact Finish - Post	Contact Type	Insulation Height	Number of Positions Loaded
Molex 0022232118	60 Ąin	Automotive General Purpose Medical Telecommunications	Header	Through Hole	11	Square	All	Tin	Solder	Shrouded - 1 Wall	Nylon Polyamide (PA)	0.1 in	0.14 in	0.56 in	Friction Lock	0.295 in	UL94 V-0	Board Board or Cable	60 µin	1	Brass	White	Tin	Male Pin	0.322 in
Molex 0022235084	60 Ąin	Automotive General Purpose Medical Telecommunications	Header	Through Hole	8	Square	All	Tin	Solder	Shrouded - 1 Wall	Glass Filled Polyester	0.1 in	0.14 in	0.56 in	Friction Lock	0.295 in	UL94 V-0	Board Board or Cable	60 µin	1	Brass	Natural	Tin	Male Pin	0.322 in
Molex 0022236032	60 Ąin	Automotive General Purpose Medical Telecommunications	Header	Through Hole	3	Square	All	Tin	Solder	Shrouded - 1 Wall	Nylon Polyamide (PA)	0.1 in	0.58 in	1 in	Friction Lock	0.295 in	UL94 V-0	Board Board or Cable	60 µin	1	Brass	White	Tin	Male Pin	0.322 in
Molex 0022232038	60 Ąin	Automotive General Purpose Medical Telecommunications	Header	Through Hole	3	Square	All	Tin	Solder	Shrouded - 1 Wall	Nylon Polyamide (PA)	0.1 in	0.14 in	0.56 in	Friction Lock	0.295 in	UL94 V-0	Board Board or Cable	60 µin	1	Brass	White	Tin	Male Pin	0.322 in
Molex 0022233050	60 Ąin	Automotive General Purpose Medical Telecommunications	Header	Through Hole	5	Square	All	Tin	Solder	Shrouded - 1 Wall	Nylon Polyamide (PA)	0.1 in	0.175 in	0.5 in	Friction Lock	0.26 in	UL94 V-0	Board Board or Cable	60 µin	1	Brass	White	Tin	Male Pin	0.322 in
Molex 0022232151	100 Ąin	Automotive General Purpose Medical Telecommunications	Header	Through Hole	15	Square	All	Tin	Solder	Shrouded - 1 Wall	Nylon Polyamide (PA)	0.1 in	0.14 in	0.56 in	Friction Lock	0.295 in	UL94 V-0	Board Board or Cable	100 µin	1	Brass	White	Tin	Male Pin	0.322 in
Molex 0022232021	100 Ąin	Automotive General Purpose Medical Telecommunications	Header	Through Hole	2	Square	All	Tin	Solder	Shrouded - 1 Wall	Nylon Polyamide (PA)	0.1 in	0.14 in	0.56 in	Friction Lock	0.295 in	UL94 V-0	Board Board or Cable	100 µin	1	Brass	White	Tin	Male Pin	0.322 in
Molex 0022232211	100 Ąin	Automotive General Purpose Medical Telecommunications	Header	Through Hole	21	Square	All	Tin	Solder	Shrouded - 1 Wall	Nylon Polyamide (PA)	0.1 in	0.14 in	0.56 in	Friction Lock	0.295 in	UL94 V-0	Board Board or Cable	100 µin	1	Brass	White	Tin	Male Pin	0.322 in
Molex 0022232043	60 Ąin	Automotive General Purpose Medical Telecommunications	Header	Through Hole	4	Square	All	Tin	Solder	Shrouded - 1 Wall	Nylon Polyamide (PA)	0.1 in	0.145 in	0.53 in	Friction Lock	0.26 in	UL94 V-0	Board Board or Cable	60 µin	1	Brass	White	Tin	Male Pin	0.322 in
Molex 0022233115	100 Ąin	Automotive General Purpose Medical Telecommunications	Header	Through Hole	11	Square		Tin	Solder	Shrouded - 1 Wall	Nylon Polyamide (PA)	0.1 in	0.14 in	0.56 in	Friction Lock	0.295 in	UL94 V-0	Board Board or Cable	100 µin	1	Brass	White	Tin	Male Pin	0.322 in	10
