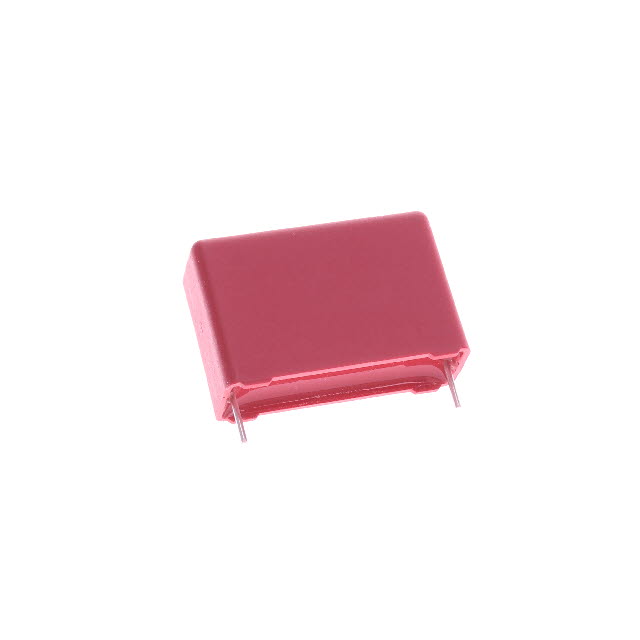

Specification	MKS4G042206B00KSSD

Applications	DC Filtering, DC Link, Automotive
Capacitance	2.2 µF
Dielectric Material	Metallized, Polyester, Polyethylene Terephthalate (PET)
Height - Seated (Max)	0.827 in
Lead Spacing	1.083 in
Mounting Type	Through Hole
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Package / Case	Radial
Ratings	AEC-Q200
Size / Dimension Length	1.24 in
Size / Dimension Width	0.433 in
Termination	PC Pins
Tolerance	10 %
Voltage Rating - AC	200 Vpk
Voltage Rating - DC	400 V

MKS4G0 Series

...

Part	Voltage Rating - AC	Package / Case	Termination	Ratings	Applications	Tolerance	Lead Spacing	Capacitance	Operating Temperature (Max)	Operating Temperature (Min)	Dielectric Material	Voltage Rating - DC	Mounting Type	Height - Seated (Max)	Size / Dimension Width	Size / Dimension Length
WIMA MKS4G021502B00KB00	200 Vpk	Radial	PC Pins	AEC-Q200	Automotive DC Filtering DC Link	10 %	0.295 in	0.015 µF	125 °C	-55 °C	Metallized Polyester Polyethylene Terephthalate (PET)	400 V	Through Hole	0.335 in	0.118 in	0.394 in
WIMA MKS4G036805D00KJ00	200 Vpk	Radial	PC Pins	AEC-Q200	Automotive DC Filtering DC Link	10 %	0.886 in	0.68 µF	125 °C	-55 °C	Metallized Polyester Polyethylene Terephthalate (PET)	400 V	Through Hole	16.51 mm	0.276 in	1.043 in
WIMA MKS4G022202C00MD00	200 Vpk	Radial	PC Pins	AEC-Q200	Automotive DC Filtering DC Link	20 %	0.295 in	0.022 µF	125 °C	-55 °C	Metallized Polyester Polyethylene Terephthalate (PET)	400 V	Through Hole	0.354 in	0.157 in	0.394 in
WIMA MKS4G021503C00MI00	200 Vpk	Radial	PC Pins	AEC-Q200	Automotive DC Filtering DC Link	20 %	0.394 in	0.015 µF	125 °C	-55 °C	Metallized Polyester Polyethylene Terephthalate (PET)	400 V	Through Hole	0.354 in	0.157 in	0.512 in
WIMA MKS4G032203G00JJ00	200 Vpk	Radial	PC Pins	AEC-Q200	Automotive DC Filtering DC Link	5 %	0.394 in	0.22 µF	125 °C	-55 °C	Metallized Polyester Polyethylene Terephthalate (PET)	400 V	Through Hole	0.472 in	0.236 in	0.512 in
WIMA MKS4G021502B00MI00	200 Vpk	Radial	PC Pins	AEC-Q200	Automotive DC Filtering DC Link	20 %	0.295 in	0.015 µF	125 °C	-55 °C	Metallized Polyester Polyethylene Terephthalate (PET)	400 V	Through Hole	0.335 in	0.118 in	0.394 in
WIMA MKS4G031503G00KB00	200 Vpk	Radial	PC Pins	AEC-Q200	Automotive DC Filtering DC Link	10 %	0.394 in	0.15 µF	125 °C	-55 °C	Metallized Polyester Polyethylene Terephthalate (PET)	400 V	Through Hole	0.472 in	0.236 in	0.512 in
WIMA MKS4G024702E00MC00	200 Vpk	Radial	PC Pins	AEC-Q200	Automotive DC Filtering DC Link	20 %	0.295 in	47 nF	125 °C	-55 °C	Metallized Polyester Polyethylene Terephthalate (PET)	400 V	Through Hole	0.413 in	0.197 in	0.406 in
WIMA MKS4G041005G00KSSD	200 Vpk	Radial	PC Pins	AEC-Q200	Automotive DC Filtering DC Link	10 %	0.886 in	1 µF	125 °C	-55 °C	Metallized Polyester Polyethylene Terephthalate (PET)	400 V	Through Hole	0.748 in	0.413 in	1.043 in
WIMA MKS4G031502F00MH00	200 Vpk	Radial	PC Pins	AEC-Q200	Automotive DC Filtering DC Link	20 %	0.295 in	0.15 µF	125 °C	-55 °C	Metallized Polyester Polyethylene Terephthalate (PET)	400 V	Through Hole	0.492 in	0.224 in	0.406 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

MKS4G042206B00KSSD | Datasheet
