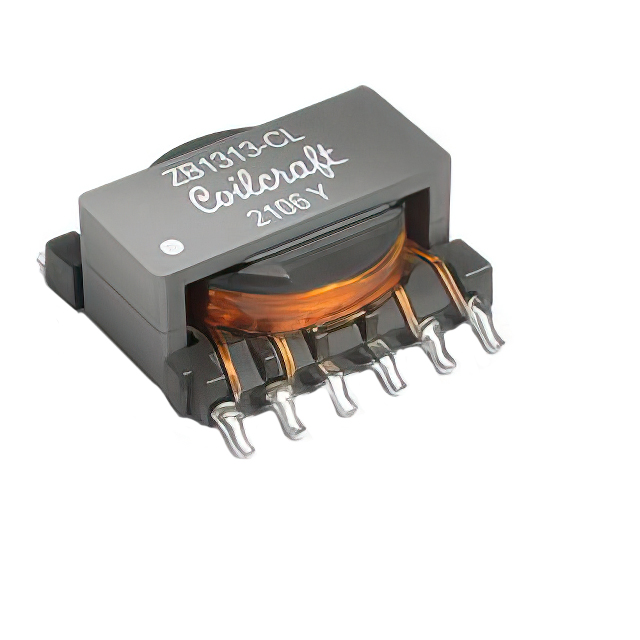

ZB1313-CLD
Flyback Converters For For DC/DC Converters SMPS Transformer 1500Vrms Isolation 163kHz Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | ZB1313-CLD |
|---|---|
| Applications | Flyback Converters |
| Chipset Manufacturer | Maxim Integrated |
| Footprint Length | 0.661 in |
| Footprint Width | 0.642 in |
| Frequency | 163 kHz |
| Height - Seated (Max) | 0.291 in |
| Inductance | 10.5 µH |
| Intended Chipset | MAX17690 |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Style | Wirewound |
| Type | For DC/DC Converters |
| Voltage - Isolation | 1500 Vrns |
| Voltage - Primary (Max) | 38 V |
| Voltage - Primary (Min) | 18 V |
