2859712
ObsoletePhoenix Contact

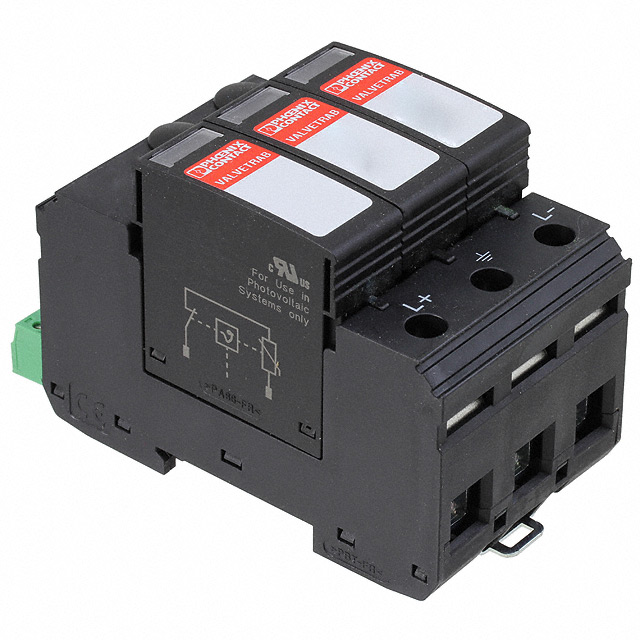

SPD TYPE 1/TYPE 2 528VAC MCOV
2859712
ObsoletePhoenix Contact
SPD TYPE 1/TYPE 2 528VAC MCOV
Description
General part information
2859712
SPD TYPE 1/TYPE 2 528VAC MCOV
Technical Specifications
Parameters and characteristics for this part
| Specification | 2859712 |
|---|---|
| Approval Agency | UL |
| Current - Discharge (Nom) | 100 kA |
| Current - Short Circuit Rating (SCCR) | 25 kA |
| Features | Remote Signaling Contacts |
| Form | Module Only |
| Mounting Type | DIN Rail |
| Number of Poles | 4 |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
| Type | Type 1, Type 2 |
| Voltage - Continuous Operating (Max) (MCOV) | 528 VAC |
| Voltage - Protection Level (VP) (2416) | 2.2 kV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
