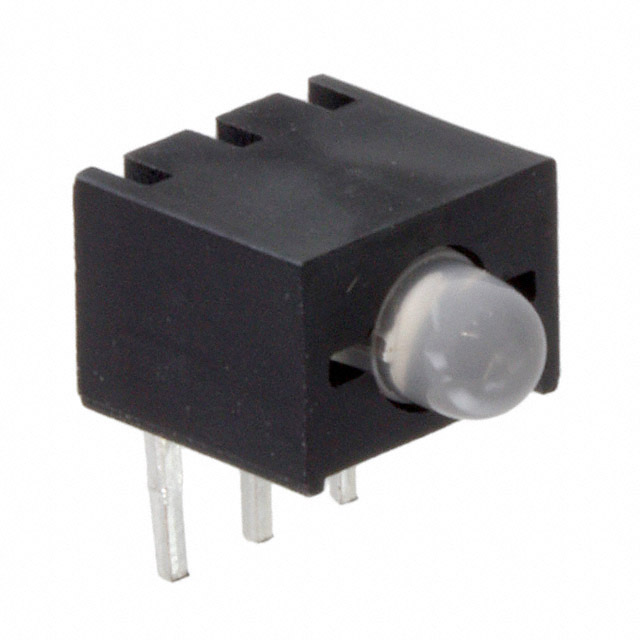

SSF-LXH409SISUGW

Active

Lumex Opto/Components Inc.

LED CBI 3MM GREEN/RED DIFF 3LD

Deep-Dive with AI

Search across all available documentation for this part.

SSF-LXH409SISUGW

Active

Lumex Opto/Components Inc.

LED CBI 3MM GREEN/RED DIFF 3LD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SSF-LXH409SISUGW	SSF-LXH409 Series

Color	Red, Green	Red, Green, Yellow
Configuration	Single	Single
Current	25 mA, 30 mA	25 - 30 mA
Current	-	20mA Yellow, 20mA Green
Lens Size	3 mm	3 mm
Lens Size	T-1	T-1
Lens Style	Round with Domed Top	Round with Domed Top
Lens Type	Diffused, White	Diffused, White
Millicandela Rating	-	25 - 250 mcd
Millicandela Rating [custom]	130 mcd	130 mcd
Millicandela Rating [custom]	300 mcd	300 mcd
Mounting Type	-	Through Hole, Right Angle
Viewing Angle	60 °	60 °
Voltage Rating	2.2 V, 2 V	2 - 2.2 V
Wavelength - Peak	574 nm, 636 nm	565 - 636 nm

SSF-LXH409 Series

LED CBI 3MM GREEN/RED DIFF 3LD

Part	Millicandela Rating [custom]	Millicandela Rating [custom]	Current	Viewing Angle	Lens Type	Lens Size	Lens Size	Color	Lens Style	Configuration	Voltage Rating	Wavelength - Peak	Mounting Type	Millicandela Rating	Current
Lumex Opto/Components Inc. SSF-LXH409SISUGW	130 mcd	300 mcd	25 mA, 30 mA	60 °	Diffused, White	3 mm	T-1	Green, Red	Round with Domed Top	Single	2 V, 2.2 V	574 nm, 636 nm
Lumex Opto/Components Inc. SSF-LXH409-59IGW				60 °	Diffused, White	3 mm	T-1	Green, Red	Round with Domed Top	Single	2 V, 2.2 V	565 nm, 635 nm	Through Hole, Right Angle	25 mcd
Lumex Opto/Components Inc. SSF-LXH409SYSUGW				60 °	White	3 mm	T-1	Green, Yellow	Round with Domed Top	Single	2 V, 2.2 V	574 nm, 590 nm	Through Hole, Right Angle	80 mcd, 250 mcd	20mA Green, 20mA Yellow

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.02
		10	$ 2.01
		100	$ 1.55
		500	$ 1.40
		1000	$ 1.20
		2000	$ 1.14
		5000	$ 1.11

Description

General part information

SSF-LXH409 Series

LED Circuit Board Indicator LED Circuit Board Indicator Single Green, Red Diffused, White 2.2V Green, 2V Red 25mA Green, 30mA Red Round with Domed Top 3mm, T-1
