ERCD-040-18.00-TEU-TED-1-D

Active

Samtec Inc.

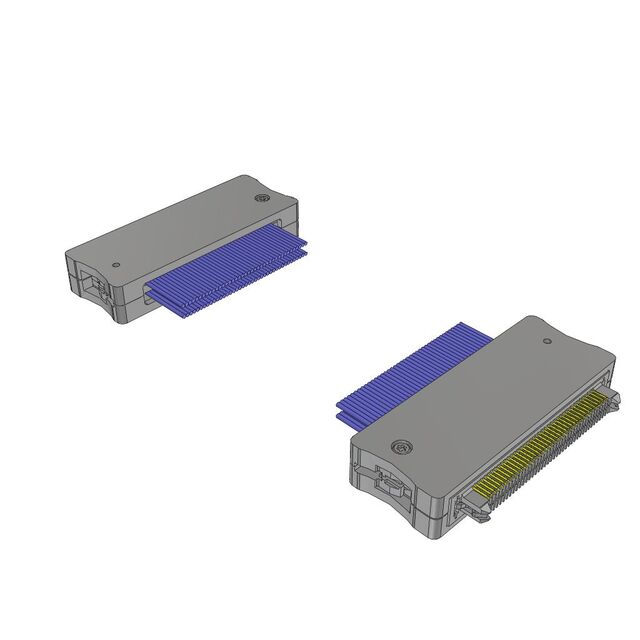

CABLE ASSEMBLY COAXIAL 0.46M 34AWG BOARD TO BOARD TO BOARD TO BOARD M-M EDGE RATE® BAG

Search across all available documentation for this part.

Active

Samtec Inc.

CABLE ASSEMBLY COAXIAL 0.46M 34AWG BOARD TO BOARD TO BOARD TO BOARD M-M EDGE RATE® BAG

Technical Specifications

Parameters and characteristics for this part

Specification	ERCD-040-18.00-TEU-TED-1-D

Cable Termination	IDC
Color	Ribbon, Blue
Connector Type	Card Edge to Card Edge, Reversed
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Length [x]	457.2 mm
Length [x]	1.5 ft
Number of Positions	80
Number of Rows	2
Pitch - Cable	0.016 in
Pitch - Cable	0.4 mm
Pitch - Connector	0.8 mm
Pitch - Connector	0.031 in
Shielding	Unshielded

Part	Shielding	Number of Positions	Color	Pitch - Cable	Pitch - Cable	Pitch - Connector	Pitch - Connector	Contact Finish Thickness	Contact Finish Thickness	Length [x]	Length [x]	Number of Rows	Contact Finish	Cable Termination	Connector Type
Samtec Inc. ERCD-040-18.00-TEU-TED-1-D	Unshielded	80	Blue Ribbon	0.016 in	0.4 mm	0.8 mm	0.031 in	50 µin	1.27 µm	457.2 mm	1.5 ft	2	Gold	IDC	Card Edge to Card Edge Reversed
Samtec Inc. ERCD-040-24.00-TEU-TED-1-D	Unshielded	80	Blue Ribbon	0.016 in	0.4 mm	0.8 mm	0.031 in	50 µin	1.27 µm	609.6 mm	2 '	2	Gold	IDC	Card Edge to Card Edge Reversed
Samtec Inc. ERCD-040-40.00-TEU-TED-1-B	Unshielded	80	Blue Ribbon	0.016 in	0.4 mm	0.8 mm	0.031 in	50 µin	1.27 µm	1.02 m	3.33 '	2	Gold	IDC	Card Edge to Card Edge Reversed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

80 Position Cable Assembly Rectangular Card Edge to Card Edge, Reversed 1.50' (457.20mm)
