Description
General part information

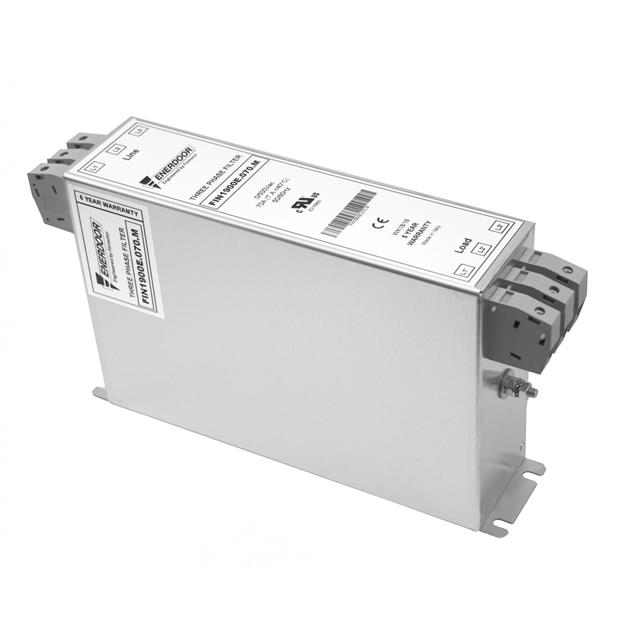

FIN1900E.055.M
Three Phase (Delta) EMC/EMI Line Filter 55 A 50/60Hz Two Stage Terminal Block
Technical Specifications
Parameters and characteristics for this part
| Specification | FIN1900E.055.M |
|---|---|
| Applications | General Purpose |
| Approval Agency | CSA, UL, CE, cURus |
| Configuration | Two Stage |
| Current | 55 A |
| Filter Subtype | Delta |
| Filter Type | Three Phase |
| Frequency - Operating | 60Hz, 50Hz |
| Frequency - Operating (Max) | 60 Hz |
| Frequency - Operating (Min) | 50 Hz |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Termination Style | Terminal Block |
| Voltage - Rated AC (Phase to Ground/Neutral) | 3.1 kV |
| Voltage - Rated AC (Phase to Phase) | 2.3 kV |
