XCZU7CG-2FFVC1156I
ActiveAMD
IC SOC CORTEX-A53 1156FCBGA
Deep-Dive with AI
Search across all available documentation for this part.
XCZU7CG-2FFVC1156I
ActiveAMD
IC SOC CORTEX-A53 1156FCBGA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XCZU7CG-2FFVC1156I |
|---|---|
| Architecture | MCU, FPGA |
| Connectivity | UART/USART, EBI/EMI, USB OTG, MMC/SD/SDIO, I2C, SPI, CANbus, Ethernet |
| Core Processor | Dual ARM® Cortex®-A53 MPCore™ with CoreSight™, Dual ARM®Cortex™-R5 with CoreSight™ |
| Number of I/O | 360 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 C |

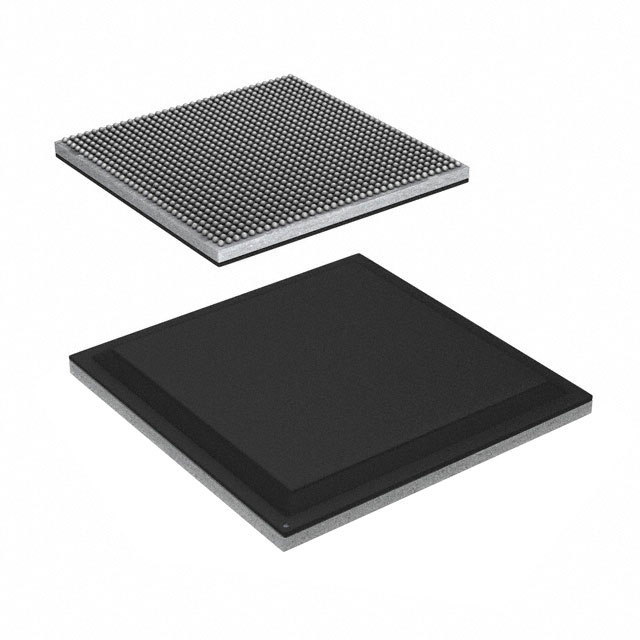

| Package / Case | 1156-BBGA, FCBGA |
| Peripherals | DMA, WDT |
| Primary Attributes | Zynq®UltraScale+™ FPGA, 504K+ Logic Cells |
| RAM Size | 256 KB |
| Speed | 1.3 GHz |
| Speed | 533 MHz |
| Supplier Device Package | 1156-FCBGA (35x35) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 4603.75 | |
Description
General part information
XCZU7CG-2FFVC1156I
Dual ARM® Cortex®-A53 MPCore™ with CoreSight™, Dual ARM®Cortex™-R5 with CoreSight™ System On Chip (SOC) IC Zynq® UltraScale+™ MPSoC CG Zynq®UltraScale+™ FPGA, 504K+ Logic Cells 533MHz, 1.3GHz 1156-FCBGA (35x35)
Documents
Technical documentation and resources
No documents available
