AC6AFB

Active

AMPHENOL AUDIO

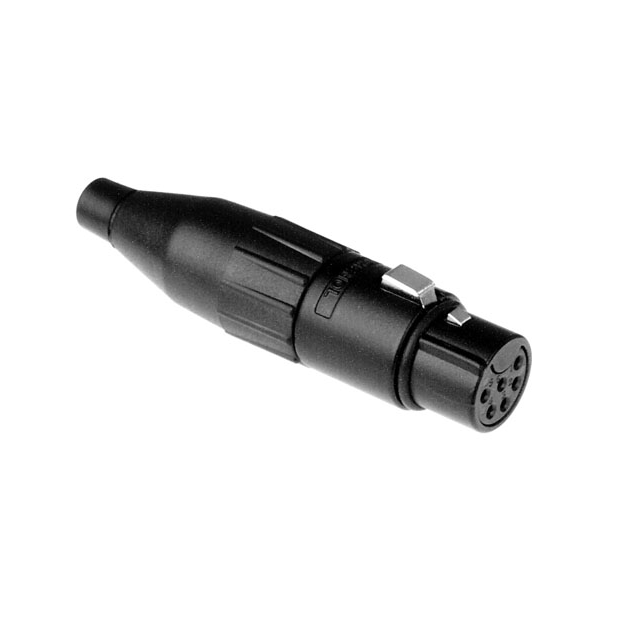

6 POLE XLR FEMALE CABLE CONNECTOR, MACHINED CONTACTS, BLACK FINISH /BOX ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

AMPHENOL AUDIO

6 POLE XLR FEMALE CABLE CONNECTOR, MACHINED CONTACTS, BLACK FINISH /BOX ROHS COMPLIANT: YES

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 7.38
Newark	Each	100	$ 8.72
		250	$ 7.96

General part information

6 Position Circular Connector Plug, Female Sockets Solder Cup

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	AC6AFB	AC6AF Series

Applications	Audio	Audio
Backshell Material, Plating	Polyphenylene Ether (PPE)	Polyphenylene Ether (PPE)
Cable Opening [Max] [custom]	6.5 mm	6.5 mm
Cable Opening [Max] [custom]	0.256 in	0.256 in
Cable Opening [Min] [custom]	0.118 in	0.118 in
Cable Opening [Min] [custom]	3 mm	3 mm
Color	Black	Black, Silver
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Finish - Mating	Silver	Silver
Contact Material	Phosphor Bronze	Phosphor Bronze
Current Rating (Amps)	7.5 A	7.5 A
Fastening Type	Latch Lock	Latch Lock
Features	Cable Clamp, Backshell	Cable Clamp, Backshell, Ground
Ingress Protection	IP40	IP40
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	-	Flange
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	6	6
Operating Temperature [Max]	75 ░C	75 ░C
Operating Temperature [Min]	-25 °C	-25 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Black	Black, Nickel
Shell Material	Zinc Die Cast	Zinc Die Cast
Shell Size - Insert	XLR	XLR
Shielding	Unshielded	Unshielded, Shielded

6 POLE XLR FEMALE CABLE CONNECTOR, MACHINED CONTACTS, BLACK FINISH /BOX ROHS COMPLIANT: YES

Part	Mounting Type	Contact Finish - Mating	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Color	Shielding	Shell Material	Fastening Type	Contact Material	Connector Type	Orientation	Current Rating (Amps)	Backshell Material, Plating	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Material Flammability Rating	Ingress Protection	Applications	Features	Shell Finish	Number of Positions	Mounting Feature
AMPHENOL AUDIO AC6AFB	Free Hanging (In-Line)	Silver	0.118 in	6.5 mm	3 mm	0.256 in	Black	Unshielded	Zinc Die Cast	Latch Lock	Phosphor Bronze	Female Sockets, Plug	Keyed	7.5 A	Polyphenylene Ether (PPE)	XLR	-25 °C	75 ░C	Metal	UL94 V-0	IP40	Audio	Backshell, Cable Clamp	Black	6
AMPHENOL AUDIO AC6AFDZ							Silver	Shielded	Zinc Die Cast	Latch Lock	Phosphor Bronze	Female Sockets, Plug	Keyed	7.5 A		XLR	-25 °C	75 ░C	Metal	UL94 V-0	IP40	Audio	Ground	Nickel	6	Flange
