AB-FF01206-19712-XA1

Active

American Bright Optoelectronics Corporation

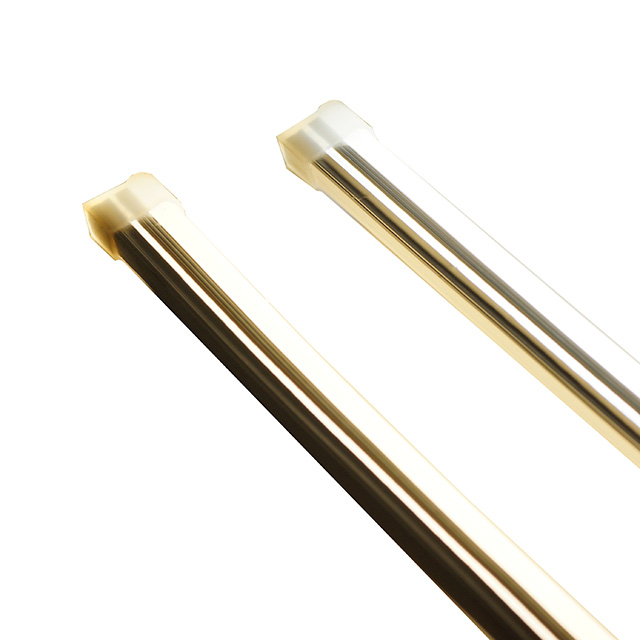

LED MOD AB-FF LNR STRIP

Search across all available documentation for this part.

Active

American Bright Optoelectronics Corporation

LED MOD AB-FF LNR STRIP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AB-FF01206-19712-XA1	AB-FF01206 Series

Color	-	Red, Green, Blue
Configuration	Linear Light Strip, Flexible	Linear Light Strip, Flexible
Current - Test	-	1.3 A
Current - Test	-	1.3 A
Current - Test	-	1.3 A
Features	IP68	IP68, IP67
Height [z]	11.8 mm	11.8 mm
Lens Type	Flat	Flat
Lumens/Watt @ Current - Test	-	38 lm/W
Lumens/Watt @ Current - Test	-	10 lm/W
Lumens/Watt @ Current - Test	-	8 lm/W
Luminous Flux @ Current/Temperature	-	60 lm
Luminous Flux @ Current/Temperature	-	190 lm
Luminous Flux @ Current/Temperature	-	40 lm
Size / Dimension [x]	5000 mm	5000 mm
Size / Dimension [y]	22 mm	22 mm
Type	LED Module	LED Module
Viewing Angle [custom]	90 °	90 °
Voltage - Forward (Vf) (Typ)	-	12 V
Wavelength	-	528nm Green, 470nm Blue, 625nm Red

LED MOD AB-FF LNR STRIP

Part	Configuration	Type	Height [z]	Size / Dimension [x]	Size / Dimension [y]	Lens Type	Features	Viewing Angle [custom]	Lumens/Watt @ Current - Test [custom]	Lumens/Watt @ Current - Test [custom]	Lumens/Watt @ Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Color	Voltage - Forward (Vf) (Typ)	Luminous Flux @ Current/Temperature	Luminous Flux @ Current/Temperature	Luminous Flux @ Current/Temperature	Wavelength
American Bright Optoelectronics Corporation AB-FF01206-19712-XA1	Flexible, Linear Light Strip	LED Module	11.8 mm	5000 mm	22 mm	Flat	IP68	90 °
American Bright Optoelectronics Corporation AB-FF01206-19700-XA1	Flexible, Linear Light Strip	LED Module	11.8 mm	5000 mm	22 mm	Flat	IP67		38 lm/W	10 lm/W	8 lm/W	1.3 A	1.3 A	1.3 A	Blue, Green, Red	12 V	60 lm	190 lm	40 lm	470nm Blue, 528nm Green, 625nm Red

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules LED Module AB-FF Linear Light Strip, Flexible
